This is a replacement . It is suitable for replacing spare parts for FISHER & PAYKEL Washing Machine.

SALIN is a leading Australian appliance spare parts distributor specializing in FISHER & PAYKEL appliances. We take pride in our ability to bring hard-to-find FISHER & PAYKEL spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our FISHER & PAYKEL range is genuine.

TECHNICAL SHEET

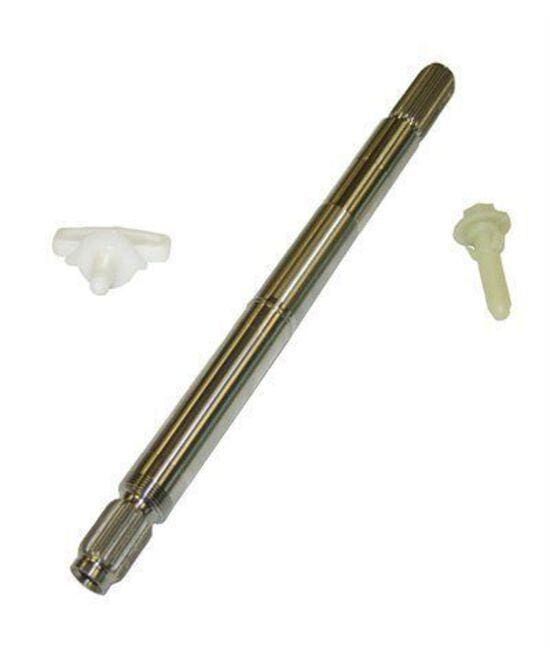

TitleFisher & Paykel Smartdrive Washing Machine Main Drive Shaft Kit - 425013 429562P
Part Number429562P
Suitable ForWashing Machine
Compatible BrandsFisher & Paykel
Notes

Part codes: 425013 429562P

This is an adaptability kit for older models to the new shaft design, and also used for new models. Just has extra bits to help with reverse compatibility.

Please note that these parts may differ from what was originally fitted & comes with fitting instructions that have the following comments:

  • The replacement-shortened shaft has internal threads rather than external threads
  • The agitator nut and rotor nut has been replaced with an agitator bolt and a rotor bolt

    • Suits:

    GW512, GW612, GW712, MW512, MW612, MW712, IW512, WA55t65, IW712, WA70T, WA80T, WA65T, WA812, GW500, GW501, GW503, GW509, GW511, GW509, GW609, GW709, GWC09, GWL09, GWM09 & MW059, LW059, AW095 , IW509, IW609, IW711, IW609, IW709, GWL10, IW710, IW810, IWC09, IWL10, IWM10 & Phase 6 series 11 & 12 models GW511, GW611, GW711, GW512, GW612, GW712, IW711, IW811, IW512, wa65t60mw, wa55t56mw, WA1068G,

    FITS ALL FISHER AND PAYKEL SMART DRIVE ALL SIZES

    GW503 - 90974 - 91974 - 93974
    GW511 - 93149
    GW512 - 93122 - 93170 - 93184 - 93195-A, 93195-B - 93209
    GW611 - 93150
    GW612 - 93124 - 93172 - 93185 - 93196-A - 93196-B - 93201
    GW703 - 90976 - 91976 - 93976
    GW711 - 93151
    GW712 - 93187-A - 93187-B - 93200-A - 93200-B - 93210
    IW711 - 93153
    IW712 - 92128 - 93173 - 93190 - 93198 - 93202
    IW811 - 93154
    IW812 - 82134 - 93134 - 93179 - 93192-A - 93192-B - 93203 - 93211
    MW60 - 92180
    MW511 - 93148
    MW512 - 93121-A - 93121-B - 93121-C - 93121-D - 93121-E - 93168 - 93182 - 93194-A, 93194-B - 93197 - 93208
    MW513 - 92103 - 92145
    WA1068G1 - 93207
    WA1068P1 - 93217
    WA55T56GW1 - 92160 - 93204
    WA60T56GW1 - 92183
    WA65T60GW1 - 92164 - 93205
    WA7060W1 - 92217
    WA70T60FW1 - 92132 - 92158 - 98158
    WA70T60GW1 - 92129 - 92146
    WA75T65GW1 - 92169 - 93206
    WA8060E1 - 92168
    WA8060G1 - 92176
    WA8060P1 - 92147
    WA80T65FW1 - 92135 - 92159
    WA80T65GW1 - 92133 - 92193
    WA8560E1, WA8560P1, WA3927G1, WA3927G2, WA8060P1, WA8060E1, WA7060E1, WA7060G1, WA7060M1,

    SKU NumberSVE_0007921
