This is a replacement . It is suitable for replacing spare parts for FISHER & PAYKEL Washing Machine.

SALIN is a leading Australian appliance spare parts distributor specializing in FISHER & PAYKEL appliances. We take pride in our ability to bring hard-to-find FISHER & PAYKEL spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our FISHER & PAYKEL range is genuine.

TECHNICAL SHEET

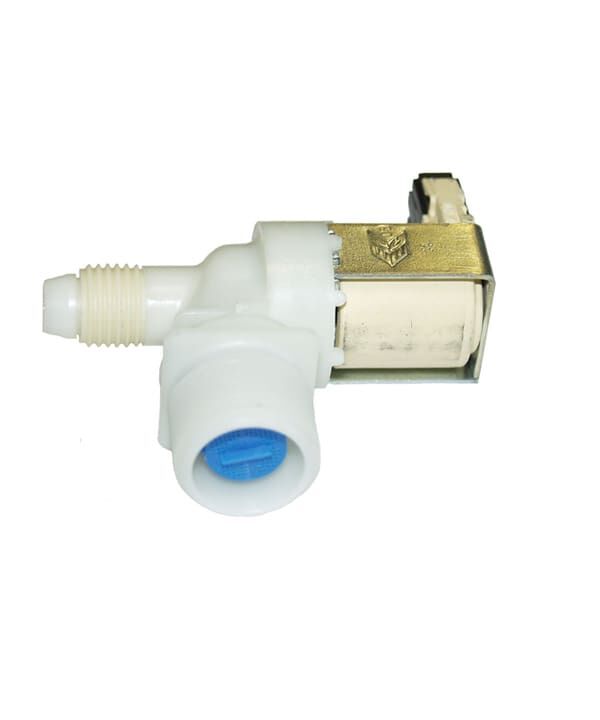

TitleFisher & Paykel Washing Machine Water Inlet Valve 24V 420148P 420147P
Part Number420148P
Suitable ForWashing Machine
Compatible BrandsFisher & Paykel
Notes

Part codes: 420148P 420147P

Genuine F&P packaged.

NOTE: MODELS FROM 2005ish ONWARDS WILL REQUIRE THE BLUE VALVES (424320, 424353, 421175) UNLESS FITTED WITH OLDER WATER CHAMBERS WHICH USE THIS VALVE. IT IS COMMON THAT SECOND HAND MACHINES CAN HAVE OLDER CHAMBERS, SO ITS POSSIBLE YOUR MACHINE MAY HAVE THESE.

IF YOU NEED THE BLUE VALVES, WE HAVE THOSE ON HERE IF YOU SEARCH FOR YOUR MODEL OR UNDER THE INLET VALVE CATEGORY. THANKS.

Inlet valve for Fisher & Paykel Smartdrive from approx. 1999 (grey modules & brown modules onward) up till about 2011 when they changed to the yellow control boards.

Doesn't replace the blue valves on models 2006 onwards, however, some may use an older chamber

I recommend these for both the cold and hot, as the hot uses a slower flow rate. Commonly hot water pressure is lower than cold, so this helps the flow to be better for hot if required. As most times on warm, it still seems like a cold wash for most users.

Suits:

Pride Excellence Intuitive

GW509, GW609, GW709, GWC09, GWL09, GWM09 & MW059, LW059, AW095 machines. Also used on Intuitive & Ecosmart models, IW509, IW609, IW709, GWL10, IW710, IW810, IWC09, IWL10, IWM10 & Phase 6 series 11 & 12 models GW511, GW611, GW711, GW512, GW612, GW712, GWC11, GWM11, mw511, 92148, GWL11, GWC12, GWM12, GWL12, IW511, IW711, IW811, IW512, IW712 (some), IW812 (some), IWM11, IWL11, IWM12, IWL12.


AW095, GW509, GW609, GW709, GWC09, GWL09, GWM09, LW095, MW059, MWC09, AW095, GW509, GW609, GW709, GWC09, GWL09, GWM09, LW095, MW059, MWC09, AW095 93142 GW509 90145 91145 92165 93145 93165 GW609 90146 91146 92166 93146 93166 GW709 90147 91147 92167 93147 93167 GWC09 94125 94135 GWL09 94127 94247 94457* GWM09 94126 94246 LW095 90142 91142 MW059 90143 91143 92163 93143 93163 MWC09 94456*, IW509 93138 IW710 93139 IW810 93140 IWC09 92138 IWL10 92140 IWM10 92139,

IW512 Intuitive 92177 NZ, Compact MW512 93168 AU GW512 92170 NZ, 93170 AU GWC12 94170 HK, 94171 SA, HK Medium (6.5KG) GW612 92172 NZ, 93172 AU GWM12 94172 HK Large 7.5KG GW712 92173 NZ, 93173 AU GWL12 94173 HK, 94174# TH, 94175+ Philippines, 95173* TW Medium (7KG) Intuitive Eco IW712 92178 NZ, 93178 AU IWM12 94178 HK Large (8KG) Intuitive Eco IW812 92179 NZ, 93179 AU IWL12 94179 HK, 94180# TH, 94181+ PH,

IW511 Intuitive 92152 NZ Compact GW511 92149 NZ, 93149 AU GWC11 94149 HK, 94158SA HK MW511 92148 NZ, 93148 AU MWC11 94159+ PH, 94148 HK Medium (6.5KG) GW611 92150, 93150 GWM11 94150 Large 7.5KG GW711 92151 NZ, 93151 AU GWL11 94151 HK, 94144# TH, 94161# PH, 95151* TW Medium (7KG) Intuitive Eco IW711 92153, 93153 IWM11 94153 Large (8KG) Intuitive Eco IW811 92154 NZ, 93154 AU IWL11 94154 HK, 94164+ PH, 94147# TH

MW511 MW512 MWC11 MWC12 GW511 GW611 GW711 GW512 GW612 GW712 GWC11 GWM11 GWL11 GWC12 GWM12 GWL12 IW511 IW711 IW811 IW512 IW712 IW812 IWM11 IWL11 IWM12 IWL12

SKU NumberSVE_0000240
