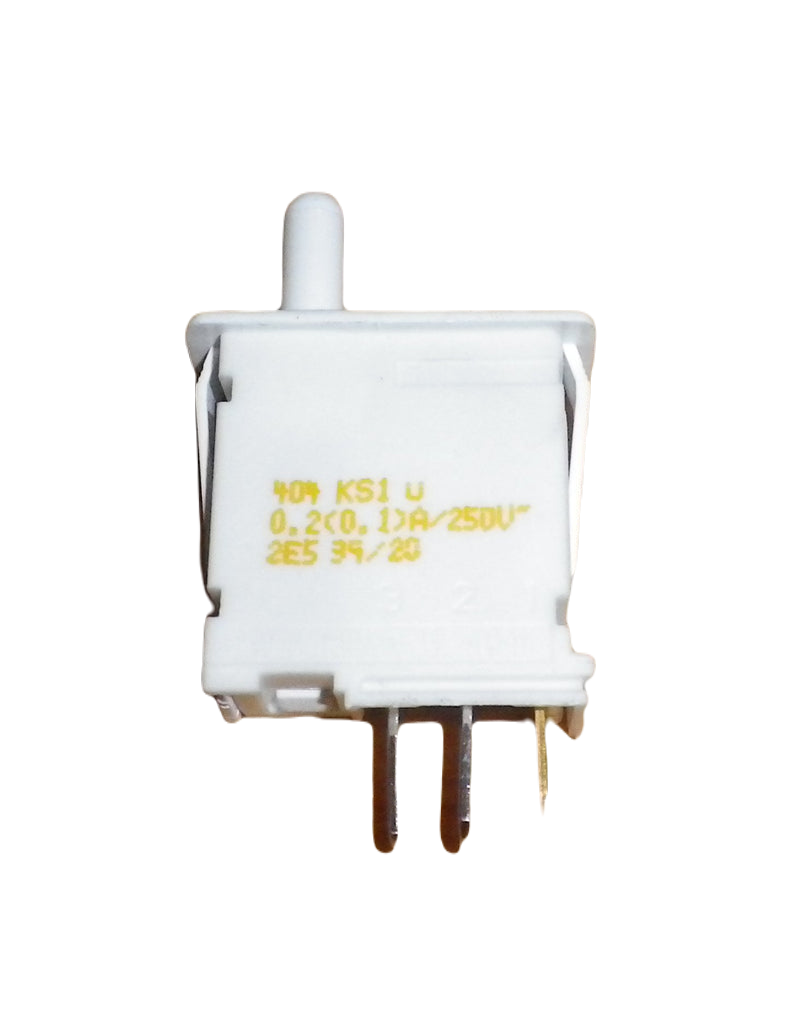

This is a replacement Fridge Fan/Light Switch, Single Button, 3 Terminals. It is suitable for replacing spare parts with 609959 part number for Bosch Fridges and Freezers.

SALIN is a leading Australian appliance spare parts distributor specializing in BOSCH applicances. We take pride in our ability to bring hard-to-find BOSCH spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our BOSCH range is genuine.

TECHNICAL SHEET
Part No609959
NotesBosch Fan/Light Switch to suit Refrigerator/Freezer.Part No. 609959, 00609959.Single pushbutton combination light & fan switch.This switch can be used on either the fridge or freezer doors, or both on some models.Suits many Bosch no frost refrigerators including models KDN53VW30A/01, KDN53VW30A/02, KDN53VW30A/03, KDN53VW30A/08, KDN53VW30A/09, KDN53VW30A/12, P1KNB3620A/22, P1KNB3620A/25, P1KNB3920A/21, P1KNB3926A/21 and many others.This switch has 2 X 4.8mm and 1 x 2.8mm spade terminals.Top dimensions 30mm x 9.8mm, body dimensions 24.7mm x 8mm, total depth 51.3mm from tip of button to tip of terminals, button length 12mm.If you are unsure of the suitability of this part, please contact us with your full model number for confirmation.This is not the only similar switch used on all Bosch models
TitleFridge Fan/Light Switch, Single Button, 3 Terminals For Bosch KDN53VW30A/03 Fridges and Freezers
CategoryAppliance Spares > Kitchen Appliances > Fridges & Freezers
Replacement ItemFridge Fan/Light Switch, Single Button, 3 Terminals
Compatible Brands✔ Bosch
Suitable Models✔  Bosch KDN53VW30A/01
✔  Bosch KDN53VW30A/02
✔  Bosch KDN53VW30A/03
✔  Bosch KDN53VW30A/08
✔  Bosch KDN53VW30A/09
✔  Bosch KDN53VW30A/12
✔  Bosch P1KNB3620A/22
✔  Bosch P1KNB3620A/25
✔  Bosch P1KNB3920A/21
✔  Bosch P1KNB3926A/21
SKU NumberFIT_0000531_001_00003
