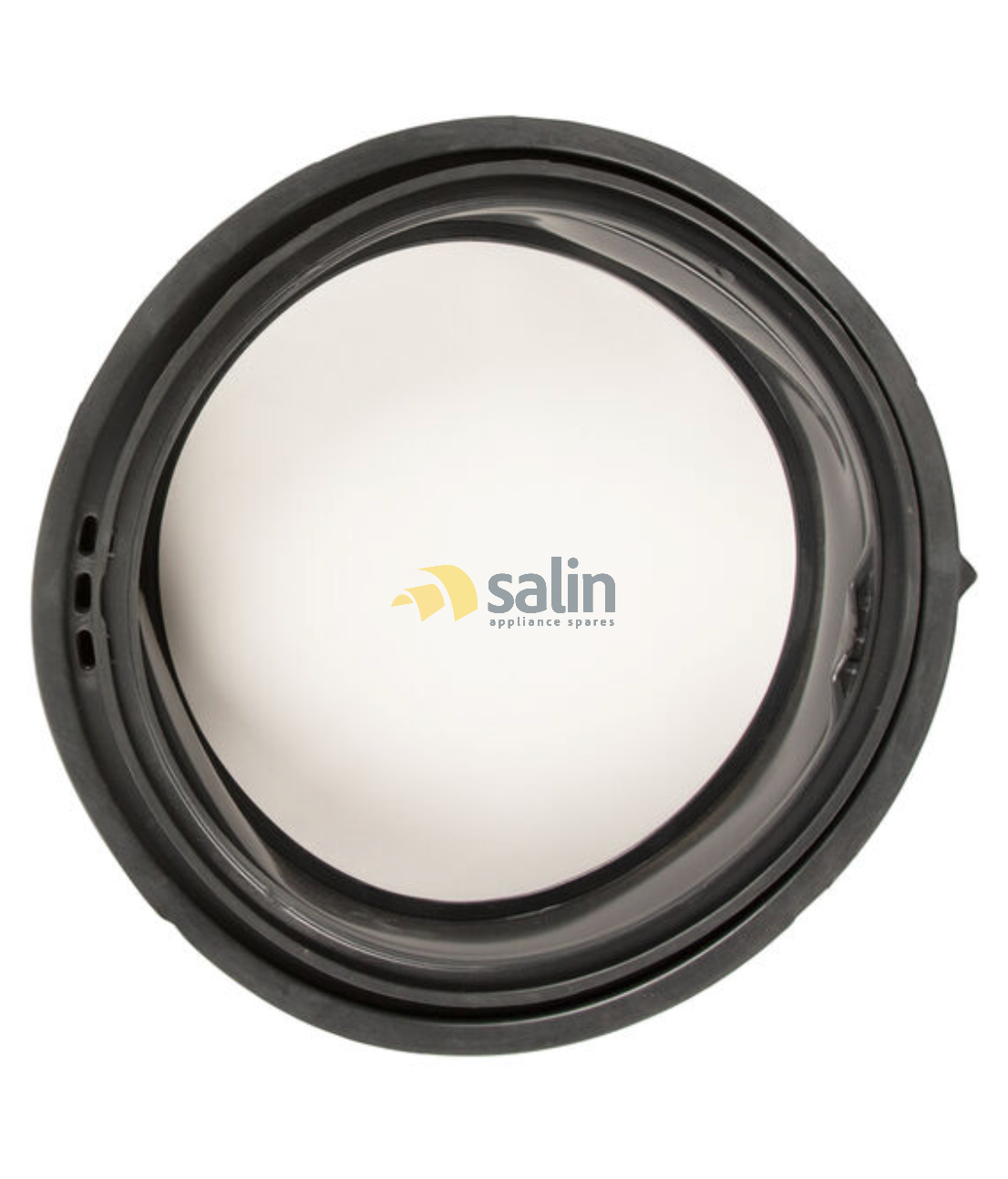

Genuine Fisher and Paykel front load washing machine door seal gasket, also fitted to the equivalent Haier front loaders. This is the flexible boot seal between the outer drum and the front panel.

Part Numbers

H0020300590D • H0020300590

Compatible Models

Fisher & Paykel and Haier: WH7560P, WH7560P1, WH7560P2, WH7560J1, WH7560J2, WH7560J3, WH8560P1, WH8560P2, WH8560J1, WH8560J2, WH8560J3, WH8060P1, WH8060P2, WH8060J3, WH9060J3, WH2424F1

Product Numbers (PNC)

92136-A, 92137-A, 93230-A, 92141-A, 92229-A, 92142-A, 92231-A, 93161-A, 93229-A, 61381-A, 61396-A, 61399-A, 61382-A, 61380-A, 62300-A, 62341-A, 92230-A, 61398-A

Fisher and Paykel change the boot seal between build revisions, so please check the product number on the rating plate inside the door as well as the model number.

Installation

Disconnect the machine from power and water first. Release the outer retaining band and fold the seal back off the front panel, then release the inner band from the drum lip. Fit the new seal with the drain holes at the bottom and the locating mark at the top, refit both bands, then run a short rinse cycle and check for leaks.
