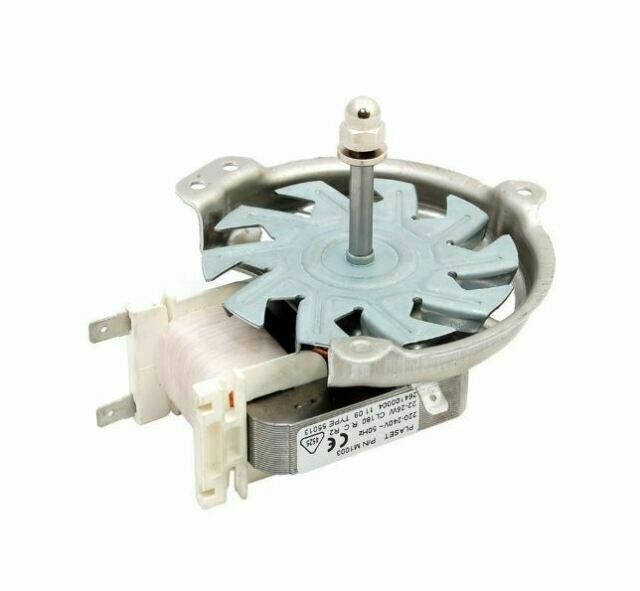

Genuine Miele fan forced oven motor. This is the circulation fan motor fitted behind the rear baffle of Miele H series built in ovens and free standing cookers.

Part Numbers

5117409 (current) • 05117408 • 5117408 • 1901728

Miele has superseded 05117408 to 5117409. The two are interchangeable and 5117409 is what is supplied.

Specifications

• Item: fan forced oven motor, rear circulation fan
• Brand: Miele
• Suits: built in ovens and free standing cookers, H series
• Supplied as motor only unless stated otherwise

Installation

Disconnect the oven from power before starting. Remove the rear fan baffle inside the cavity, take off the fan blade, unplug the motor leads and unbolt the motor from the rear panel. Fit the new motor, refit the blade and baffle, then run the oven on fan forced and check the blade turns freely without contact.

Compatible Models

H2 series: H2160B, H2160E, H2161-1B, H2161-1E, H2161B, H2161E, H2164-1E, H2164E, H2165E, H2166E, H2167E, H2260B, H2260E, H2261-1B, H2261-1E, H2261B, H2261E, H2263E, H2264-1E, H2264E

H3 series: H310-1B, H310-1E, H310-3B, H310-3E, H310B, H310E, H310E-A, H311B, H311E, H3120E, H3121E, H313B, H3140B, H3140E, H3141B, H3141E, H316-1B, H316-1BC, H316-1E, H316-1EC, H316-3B, H316-3BC, H316-3E, H316B, H316BT, H316E, H316ET, H317B, H317E, H318B, H318E, H319EC, H319ET, H320-1E, H320-2E, H320-3E, H320E, H320E-A, H321B, H321E, H3221E, H3241B, H3241E, H326-1E, H326-2E, H326-3E, H326E, H326ET, H327B, H327E, H328-2B, H328-2E, H328B, H328E, H329BC, H329BT, H329EC, H329ET

H4 series: H4010BM, H4012BM, H4020BM, H4022BM, H4100B, H4100E, H4100EC, H4101E, H4102B, H4102E, H4104E, H4105E, H4107E, H4110B, H4110BP, H4110E, H4110EC, H4112B, H4112BP, H4112E, H4112EP, H4114B, H4114BP, H4114E, H4114EP, H4115B, H4115BP, H4115E, H4115EP, H4117B, H4117BP, H4117E, H4117EP, H4140B, H4140BC, H4150B, H4155E, H4160E-KAT, H4171BP, H4171EP, H4200B, H4200E, H4202B, H4202E, H4204B, H4204E, H4205B, H4205E, H4207B, H4207E, H4210B, H4210BP, H4210E, H4212B, H4212BP, H4212E, H4215B, H4215BP, H4215E, H4215EP, H4217B, H4217BP, H4217E, H4217EP, H4218B, H4218BP, H4218E, H4218EP, H4235E, H4240B, H4240BC, H4250B, H4250BC, H4260E-KAT, H4271BP, H4271EP, H4301E, H4302B, H4302E, H4304E, H4312B, H4312BP, H4312E, H4312EP, H4314B, H4314E, H4318BP, H4318EP

About Salin

Salin Appliance Spares is an Australian owned and operated appliance spare parts distributor based in Sydney, NSW. If you are unsure of fitment, send us your full Miele model number and serial number and we will confirm it before you order.
