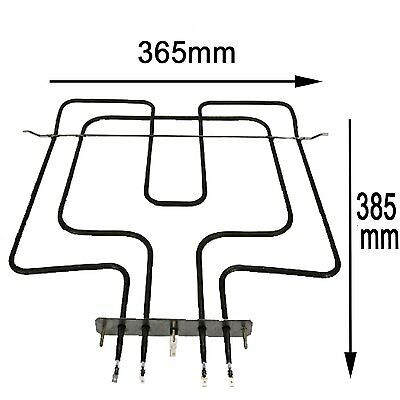

Whirlpool Oven Upper / Grill Element

Genuine Whirlpool upper grill element. This is the element in the roof of the oven cavity that does the grilling and the top heat on combined settings. It is a sheathed element with two terminals at the back of the cavity and is replaced as a complete unit.

Part Numbers

Primary part number: 481225998466

Also written as 481225998466 without spacing and as 48122 599 8466. Whirlpool, Ignis, Bauknecht and some Ikea-badged ovens share the Whirlpool numbering system, so this is the correct reference across those catalogues where the same cavity is used.

Search terms: 481225998466, Whirlpool grill element, Whirlpool upper element, 6AKP238 element, AKP238 grill element, oven top element.

Brands Covered

Whirlpool. The same element also appears under Ignis, Bauknecht and Ikea badges where those ovens use the Whirlpool cavity.

Suitable Models

6AKP238, 6AKP238IX, 6AKP238WH. Also searched as AKP238, AKP 238, and 6AKP 238.

Before you order: oven elements are matched by wattage, physical shape and terminal position, not by model badge alone. If your model is not listed, quote the number stamped on the element bracket, or send us a photo of the element in place with a tape measure across it, and we will confirm before we dispatch.

Symptoms Of A Failed Grill Element

• Grill does not heat at all, or only part of the element glows
• Element glows red in patches with cold sections between
• Element visibly blistered, sagging, split or burnt through
• Oven trips the circuit breaker or RCD when the grill is selected
• Arcing, sparking or a flash from the element
• Element tests open circuit at the terminals

OEM Genuine

This is an OEM genuine part. It is made by the original equipment manufacturer, the same company in the same factory that made the part fitted to your appliance when it was built, and it carries their part number. It is supplied to us without the appliance brand retail packaging, and that is the only reason it costs less than a boxed part bought from the brand. The part itself is the same part.

Safety And Fitting

This is a mains-voltage part and must be fitted by a licensed electrician or a qualified appliance technician. Isolate the oven at the wall and prove it dead first. The element is usually held by two screws inside the cavity roof with the terminals behind the rear panel. Photograph the wiring before disconnecting, and check the terminal insulation and the wiring tails for heat damage while you are in there - a burnt tail will take out the new element too.

SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.
