HDCVI/CV TO UTP
HDCVI/CV TO UTP
SKU code: WES_VSBALHDP_1

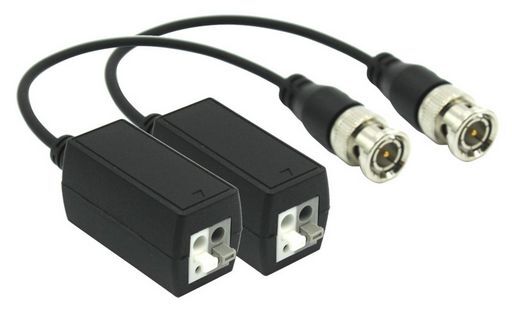

This is a HDCVI/CV TO UTP of brand Securview.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDCVI/CV TO UTP |
| Notes | Allow installer to minimise the cost of wiring for surveillance camera installations by using network cabling such as CAT6 or CAT5e instead of Coax Cable. Video transmission range up to 250m (at 1080P) or 400m (at 720p).Anti-interference ＞60db BNC Male 75 ohms Category Type UTP CAT 5E/6 (R＜10Ω/100M) Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5 Coaxial Video Connector BNC-M Compatible Format HDCVI Dimension(L*W*H) 53mmx20mmx17mm ESD 1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per:IEC61000-4-2 Humidity 0~95%(non-condensing) MTBF ＞10000H Operating Temperature -10~55℃ Resolution 720P/1080P Storage Temperature -20~70℃ Transmission Distance 720P: 400M (max) , 1080P: 250M (max) Transmission Signal 1 channel Twisted-pair Video Connector Push-terminal UTP Cable 100 ohms UTP Cable Connector 2KV(different-code),4KV(common-code),Per:IEC61000-4-5 |
| QTY | Pair |
| Manufacturer | Securview |
| Item | Balun |
| Protocol | HD-CVI |
| HD-CVI | Yes |
| SKU No | WES_VSBALHDP_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | VSBALHDP |
| SKU | WES_VSBALHDP_1 |
| Brand | Securview |
