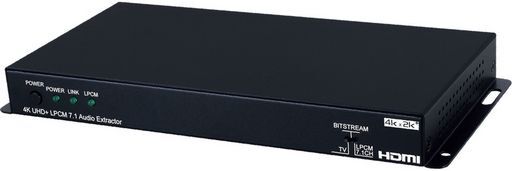

HDMI 4K UHD AUDIO EXTRACTOR 8CH
7.1 CH WITH EDID
SKU code: WES_CPLUS-V11PE8_1
This is a HDMI 4K UHD AUDIO EXTRACTOR 8CH of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI 4K UHD AUDIO EXTRACTOR 8CH |
| Notes | 7.1 CH WITH EDID This HDMI Audio Extractor can extract up to 8 channels of LPCM audio from an HDMI source, allowing the user to convert high quality lossless HDMI audio into multi-channel analog signals for use with powered speakers or non-HDMI AV receivers. Bitstream extraction is also supported via an optical S/PDIF output.Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit) and are capable of providing high quality audio and video performance. This unit supports passthrough of HD Bitstream audio formats, as well as standard Bitstream formats and LPCM 7.1 with audio sampling rates up to 192kHz. Built-in EDID management support allows the user select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compatible with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)Supports 48-bit Deep Color up to 1080p@60Hz2 slots for user-created EDIDs, and EDID bypass supportSupports CEC passthroughSupports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMIAudio extraction of LPCM 7.1 sources to 8 channel analog output and S/PDIF (S/PDIF output is limited to 2 channel source support)Audio extraction of Bitstream sources to S/PDIF output (analog output will be muted)Supports HDMI and S/PDIF audio sampling rates up to 192kHzProvides EDID management with EDID bypass and 2 user modifiable EDIDsPC based EDID management tool supportSupports RS-232 style control via a Virtual COM port over USB |
| Description | HDMI Audio Extractor 4K60 EDID 7.1CH |
| EDID | Yes |
| EDID Management | Bypass or PC defined |
| Input | 1xHDMI |
| Input Audio Formats | LPCM 7.1 (Rest is pass-through) |
| Output | 1×HDMI, 1×TOSLINK, 8×RCA |
| Output Audio Formats | SPDIF (2.0CH) & Analogue RCA (8CH) |
| Power | 5V 2.6A |
| Size | 213x116x30mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V11PE8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CPLUS-V11PE8 |
| SKU | WES_CPLUS-V11PE8_1 |
| Brand | Cypress |
