HDMI 4K60 AUDIO DECODER ARC
AUDIO RETURN CHANNEL - DTS & DOLBY COMPATIBLE
SKU code: WES_CPLUS-VSE2DD_1

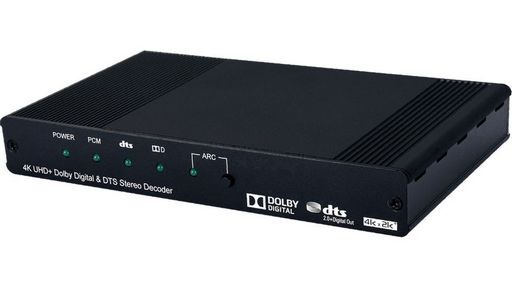

This is a HDMI 4K60 AUDIO DECODER ARC of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI 4K60 AUDIO DECODER ARC |
| Notes | AUDIO RETURN CHANNEL - DTS & DOLBY COMPATIBLE With support for the transmission of 6G video (resolutions up to 4K2K@60Hz Ultra HD, and HDCP 2.2) through High Speed HDMI cables, this HDMI Audio Converter with Dolby® Digital/DTS® 2.0+Digital Out Decoder allows an HDMI audio signal to be de-embedded and simultaneously split to both digital and analog audio outputs providing high quality audio and video performance.HDMI 6G video (resolutions up to 4K2K@60Hz with YUV444) and HDCP 2.2 compliantHDMI 1080p video with 12-bit 'Deep Color', 3D video, and HDCP 1.4 compliantBuilt-in Dolby Digital Decoder and DTS 2.0+Digital Out DecoderIntegrated digital interpolator filter and Digital-to-Analog Converter (DAC)Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 4096×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@50/60 (YUV444)Supports simultaneous audio output through HDMI, analog L/R, Coaxial and Optical outputsSupports Dolby Digital sampling rates up to 48kHzSupports DTS sampling rates up to 96kHzSupports LPCM input sampling rates up to 96kHzSupports coaxial and optical output audio sampling rates up to 96kHzSupports de-embedding the audio signal from an HDTV’s ARC (Audio Return Channel) connection |
| Description | HDMI Audio Decoder (dd) 4K60 2.0CH |
| Input | 1xHDMI |
| Input Audio Formats | DTS Dolby LPCM (All) |
| Output | HDMI Toslink Coax RCAx2 |
| Output Audio Formats | LPCM 2CH & Analogue 2CH |
| Power | 5V 2.6A |
| Size | 180x112x25mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-VSE2DD_1 |
