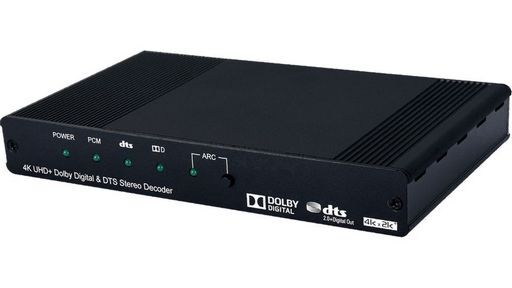

HDMI 4K60 AUDIO DECODER ARC EDID
ARC - DOLBY & DTS COMPATIBLE WITH EDID
SKU code: WES_CPLUS-VPE2DD_1
This is a HDMI 4K60 AUDIO DECODER ARC EDID of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI 4K60 AUDIO DECODER ARC EDID |
| Notes | ARC - DOLBY & DTS COMPATIBLE WITH EDID This Audio Decoder supports the transmission of high bandwidth (18Gbps) video and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance.This unit can decode standard Dolby Digital & DTS formats up to 5.1 and output the audio as stereo (LPCM 2.0) over HDMI, S/PDIF (optical and coaxial) and analog RCA connections. It can also support the passthrough of Bitstream, HD Bitstream, or LPCM 7.1 with audio sampling rates up to 192kHz if needed. If the connected display supports ARC (Audio Return Channel), and has it enabled, then this unit can extract the ARC audio and output it via all available audio outputs. Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit). Built-in EDID management support allows the user to select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compatible with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)Supports 48-bit Deep Color up to 1080p@60HzSupports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMIEmbedded Dolby Digital Decoder technologyEmbedded DTS 2.0+Digital Out Decoder technologyIntegrated digital interpolation filter and Digital-to-Analog Converter (DAC)Supports LPCM sampling rates up to 96kHzSupports Dolby Digital sampling rates up to 48kHzSupports DTS sampling rates up to 96kHzSimultaneous audio output via HDMI, analog stereo, Coaxial and OpticalSupports coaxial and optical audio sampling rates up to 96kHzSupports extracting the HDMI audio signal from an HDTV’s ARC featureProvides EDID management with EDID bypass and 1 user modifiable EDIDPC based EDID management tool supportSupports RS-232 style control via a Virtual COM port over USB |
| Description | HDMI Audio Decoder (dd) 4K60 EDID 2.0CH |
| EDID | Yes |
| EDID Management | Bypass or PC defined |
| Input | 1xHDMI |
| Input Audio Formats | DTS Dolby LPCM (All) |
| Output | HDMI Toslink Coax RCAx2 |
| Output Audio Formats | LPCM 2CH & Analogue 2CH |
| Power | 5V 2.6A |
| Size | 180x110x25mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-VPE2DD_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CPLUS-VPE2DD |
| SKU | WES_CPLUS-VPE2DD_1 |
| Brand | Cypress |
