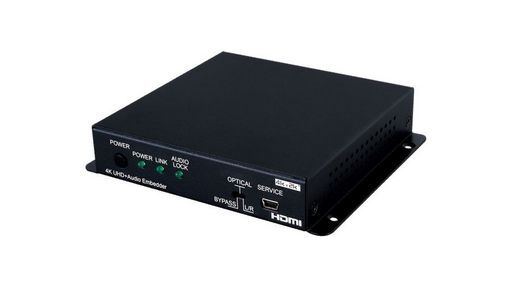

HDMI 4K60 AUDIO INSERTER EDID
WITH EDID
SKU code: WES_CPLUS-V11PI_1
This is a HDMI 4K60 AUDIO INSERTER EDID of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI 4K60 AUDIO INSERTER EDID |
| Notes | WITH EDID Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit) and are capable of providing high quality audio and video performance. This unit supports passthrough of HD and standard Bitstream formats as well as LPCM 7.1 with audio sampling rates up to 192kHz. Built-in EDID management support allows the user select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compatible with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 4096×2160@60 Hz (4:4:4, 8-bit)Supports 48-bit Deep Color up to 1080p@60HzSupports passthrough of LPCM 7.1, Bitstream HD Bitstream audio over HDMISupports embedding external audio sources (analog stereo or digital S/PDIF) into an existing HDMI source, or adding audio to a DVI source (output as HDMI)Supports HDMI audio sampling rates up to 192kHzSupports the following S/PDIF audio sampling rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHzProvides EDID management with EDID bypass and 2 user modifiable EDIDsPC based EDID management tool supportOutputs a 720p60 color bar pattern when no input is connectedSupports RS-232 style control via a Virtual COM port over USB |
| Description | HDMI Audio Inserter 4K60 EDID 2.0CH |
| EDID | Yes |
| EDID Management | Bypass or PC defined |
| Input | 1×HDMI, 1×TOSLINK, 2×RCA |
| Input Audio Formats | SPDIF 2.0CH up to 192KHz, Analogue 2CH |
| Output | 1×HDMI |
| Output Audio Formats | Compressed 2~7.1CH, LPCM 2~7.1CH, Analogue 2CH |
| Power | 5V 2.6A |
| Size | 128x116x30mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V11PI_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CPLUS-V11PI |
| SKU | WES_CPLUS-V11PI_1 |
| Brand | Cypress |
