.HDMI/DISPLAYPORT/VGA TO HDMI SCALER WITH 3D
.HDMI/DISPLAYPORT/VGA TO HDMI SCALER WITH 3D
SKU code: WES_CS-801H_1

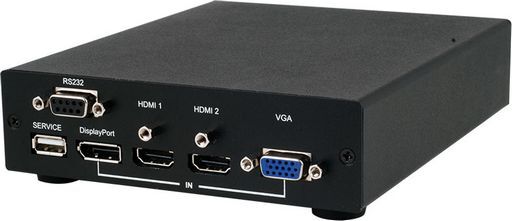

This is a .HDMI/DISPLAYPORT/VGA TO HDMI SCALER WITH 3D of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .HDMI/DISPLAYPORT/VGA TO HDMI SCALER WITH 3D |
| Notes | The CS-801H allows 3D movies to be watched on a 2D displays and can also scale and switch HDMI, DisplayPort and PC inputs to a HDMI output, along with their associated audio signals. The operation of all features can be easily handled through on-panel controls, IR remote control, or by RS-232 protocol. Supports HDMI 3D processing on Frame Packing and Top-and-Bottom at resolutions of 720p@50/60Hz and 1080p@24Hz, Side-by-Side Half signals at 720p@50/60Hz, 1080i@50/60Hz (input only) and 1080p@24/50/60Hz. Supports HDMI/Component Video input resolutions up to 1080p@50/60Hz, DisplayPort up to 2560×1600@60Hz (RB) and PC up to 1920×1200@60/75Hz.Scales HDMI, DisplayPort and PC/Component Video input resolutions to HDMI output resolutionsConverts 3D signal to 2D signal for 2D display and bypasses 3D source to 3D display without scalingSupports HDMI 3D processing on Frame Packing and Top-and-Bottom at resolutions of 720p@50/60Hz and 1080p@24Hz, Side-by-Side Half signals at 720p@50/60Hz, 1080i@50/60Hz (input only) and 1080p@24/50/60HzSupports HDMI/Component Video input resolutions up to 1080p@50/60Hz, DisplayPort up to 2560×1600@60Hz (RB) and PC up to 1920×1200@60/75HzSupports digital and analog audio bi-directional conversion, embedding and de-embedding for audio signals from individual inputs or from the HDMI sourceSupports Component Video input with supplied D-sub 15-pin to 3 RCA phono adaptor |
| Description | HDMI/DisplayPort/VGA to HDMI scaler with 3D |
| Input | 2x HDMI, 1x DP, 1x VGA |
| Output | 1x HDMI |
| Upscaled TV Res. | 1080p@60 |
| Upscaled PC Res. | WUXGA@60 (RB) |
| Downscaled TV Res. | 480p |
| Downscaled PC Res. | VGA@60 |
| Frame Rate Conversion | 60 only |
| Manufacturer | Cypress |
| Brand. | Cypress |
| SKU No | WES_CS-801H_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CS-801H |
| SKU | WES_CS-801H_1 |
| Brand | Cypress |
