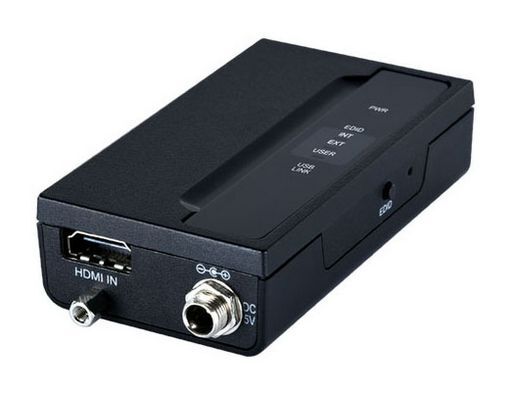

This is a HDMI ENHANCER 4K60 WITH EDID MANAGEMENT SUPPORT - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title HDMI ENHANCER 4K60 WITH EDID MANAGEMENT SUPPORT - CYPRESS
Notes This unit is designed to enhance and stabilise high-bandwidth HDMI signals for cleaner transmission while also providing the utility of customised EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). With the use of the optional PC software it is possible to create, edit, upload or download the customised User EDID. The unit’s included hot key and simple LED design allows the user to quickly switch between different configurations while viewing EDID status information.HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compliant with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)Supports 48-bit Deep Color up to 1080p@60Hz and 36-bit Deep Color up to 4k@60Hz (YUV 4:2:0)Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formatsEDID selectable between internal, external and user’s custom EDIDPC based EDID management tool support via the Micro-USB portLED display providing an easy view of the current EDID and unit status
Description4K60 (4:4:4) HDMI Enhancer
4KYes
Bandwidth18Gbps
Cable Length3M (4K)
Chassis.Plastic
Controller1x micro USB
Dimensions50x97x22mm
EDIDYes
HD AudioYes
HDCPYes
Input1×HDMI
Max Res.4K@60Hz (4:4:4)
Output1×HDMI
Size50x97x22mm
ManufacturerCypress
3DYes
SKU NoWES_CPLUS-VHHI_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CPLUS-VHHI
SKU WES_CPLUS-VHHI_1
Brand Cypress
