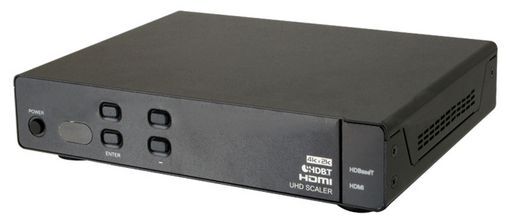

HDMI/HDBaseT TO DUAL HDMI SCALER WITH SPEAKER OUTPUT - CYPRESS
CYPRESS
SKU code: WES_CDPS-US100R_1
This is a HDMI/HDBaseT TO DUAL HDMI SCALER WITH SPEAKER OUTPUT - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI/HDBaseT TO DUAL HDMI SCALER WITH SPEAKER OUTPUT - CYPRESS |
| Notes | CYPRESS This HDMI 4K UHD Receiver/Scaler is designed to extend and scale an HDMI or HDBaseT™ signal to two HDMI outputs and an analogue audio output simultaneously. It supports the latest HDMI features such as 4K2K, 3D, 36-bit 'Deep Colour', Hi-Definition lossless audio and more. Allowing the transmission of uncompressed video and audio, as well as bi-directional IR control, RS- 232 pass through, and LAN serving over a single CAT5e/6/7 cable up to distances of 100m. The unit can be easily controlled through on-panel buttons, On-Screen Display (OSD), IR remote control, RS- 232 and IP (Web GUI/Telnet).HDMI (with 3D support) and HDCP compliantSupports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60Hz@YUV420 & 4096x2160@24/50/60Hz@YUV420)Supports downscaling of HD resolutions on to monitor/displaySupports data rates up to 340Mbps/10.2Gbps and ‘Deep Colour’ up to 1080p/36-bitSupports simultaneous HDMI outputs with individual resolution settingsSupports pass-through of audio formats: LPCM 2/5.1/7.1CH, Dolby® Digital 2~5.1CH, DTS 2~5.1CH, Dolby® Digital Plus, Dolby® TrueHD and DTS-HD Master AudioSupports Balanced audio and bi-directional IR controlSupports Ethernet transmission rates up to 100MbpsSupports control via On-Screen Display (OSD), on-panel buttons, IR Remote, RS-232 and IP (Web GUI/Telnet) control |
| Description | HDBT/HDMI to HDMI scaler |
| Input | 1x HDMI |
| Output | 2x HDMI, 1x CAT5e/6/7 |
| Upscaled TV Res. | 4K@ 24/25/30 |
| Upscaled PC Res. | WUVGA@60 (RB) |
| Downscaled TV Res. | 480i/576i |
| Downscaled PC Res. | VGA@60 |
| Frame Rate Conversion | 50/60 |
| Manufacturer | Cypress |
| SKU No | WES_CDPS-US100R_1 |
