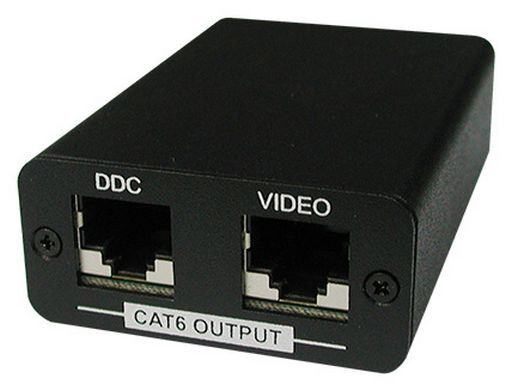

HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC - CYPRESS
UP TO 45M WITH DDC - DISPLAY DATA CHANNEL RETURN
SKU code: WES_CH-108_2
This is a HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC - CYPRESS |
| Notes | UP TO 45M WITH DDC - DISPLAY DATA CHANNEL RETURN This HDMI to CAT6 transmitter (Tx) and receiver (Rx) kit can extend HDMI digital signal through CAT-6 cables. This is compatible to HDMI v1.3 specifications, supports up to 15 metres transfer of Deep Colour 12 bit video and up to 45M in 8 bit colour. Supports lossless compressed (Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. Easy to install. Supports video resolution at up to 1080p. Power is inserted at the transmitter then to all receivers are PoC compatible.Transmitters are available with either external power-pack, or are powered by the HDMI signal. PoC (Power Over Cable).Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards, CEC bypassSupports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) Supports lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audioRequires two CAT-6 cables for AV data & DDC returnTMDS data rebuild before re-transmitting them with optimal quality regardless of the incoming signal quality1080p/8bits resolution can run up to 45 meters1080p/12bits resolution can run up to 15 meters Compatible Dual CAT6 Splitters: CLUX-1H4CAT and CLUX-1H8CAT Compatible Matrix Switches: CMLUX-4H4CAT and CMSI-8H8HC |
| Description | Dual CAT6 Repeater |
| Interface | Repeater |
| Power | PoC |
| Input | Dual CAT6 |
| Output | Dual CAT6 |
| Cable Length | 45M @ 8-bit, 15M @ 12-bit |
| Cable | Dual CAT6/7 |
| 3D | Yes |
| HDCP | Yes |
| 4K | - |
| Max Res. | 1080p |
| HD Audio | Yes |
| Deep Colour | Yes |
| IR | - |
| EDID | - |
| Cat6/6ex2 Input | 1 |
| Cat6/6ex2 Output | 1 |
| Page | 26 |
| Input Cable Length | 45M @ 8-bit, 15M @12-bit |
| Output Cable Length | 45M @ 8-bit, 15M @12-bit |
| Max. | 45M/8Bit or 15M/12Bit |
| Compatible with | CH-1103TX, CH-1103RX, CH-1106TX, CH-1106RXN |
| Manufacturer | Cypress |
| Compliance | HDMI V1.3 / DVI 1.1 |
| Extension Cables | N/A Dual |
| Device Type | Repeater |
| CEC | Yes |
| SKU No | WES_CH-108_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-108 |
| SKU | WES_CH-108_2 |
| Brand | Cypress |
