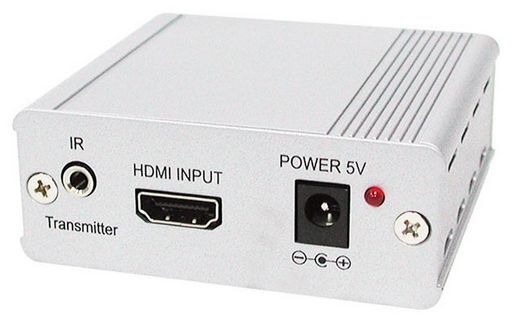

HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC WITH IR - CYPRESS
UP TO 45M WITH IR REMOTE CONTROL RETURN
SKU code: WES_CH-106TXN_1
This is a HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC WITH IR - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC WITH IR - CYPRESS |
| Notes | UP TO 45M WITH IR REMOTE CONTROL RETURN The HDMI 1.3 transmitter and receiver is one of the most economical way to send your HDMI signal up to 45m. Instead of using expensive HDMI cables, this device lets you use CAT 6 cables pair allowing the same functions like transferring Deep Colour (12 bits/colour) video and lossless compressed (Dolby® True HD, Dolby® Digital Plus and DTS-HD Master Audio) digital audio, all with a bandwidth up to 225MHz. Also allows you to use your existing remote to control your device. Supports video resolution up to 1080p.Compliant with HDMI 1.3, HDCP 1.1 and DVI 1.0 standards. Deep Colour Mode at up to 36 bits (12 bits/colour). Dolby® True HD, Dolby® Digital Plus and DTS-HD Master Digital audio.Supports CAT-6 cables for data/DDC transmission. Equalises and recovers incoming TMDS data before re-transmitting it in high quality.Supports CEC bypass and xvYCC.Cable distance 1080p/8 bits resolution up to 45 metres Cable distance 1080p/12 bits resolution up to 20 metresIncludes power packs and IR Sender & Receiver modules Compatible Dual CAT6 Transmitter & Splitters: CLUX-1H4CAT and CLUX-1H8CAT Compatible Transmitter & Matrix Switches: CMLUX-4H4CAT and CMSI-8H8HC |
| Description | HDMI over Dual CAT5e/6/7 Transmitter with IR |
| Max. | 45M/8Bit or 15M/12Bit |
| Input | 1x HDMI |
| Output | Dual CAT6 |
| IR | Yes |
| Interface | Transmitter |
| Compliance | HDMI V1.3 |
| CEC | Yes |
| EDID | - |
| HDCP | Yes |
| Max Res. | 1080p |
| Compatible with | CH-106RXN |
| Ethernet | - |
| 4K | - |
| Cable Length | 45M @ 8-bit, 20M @ 12-bit |
| Manufacturer | Cypress |
| Cable | Dual CAT6/7 |
| 3D | Yes |
| HD Audio | Yes |
| Deep Colour | Yes |
| SKU No | WES_CH-106TXN_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-106TXN |
| SKU | WES_CH-106TXN_1 |
| Brand | Cypress |
