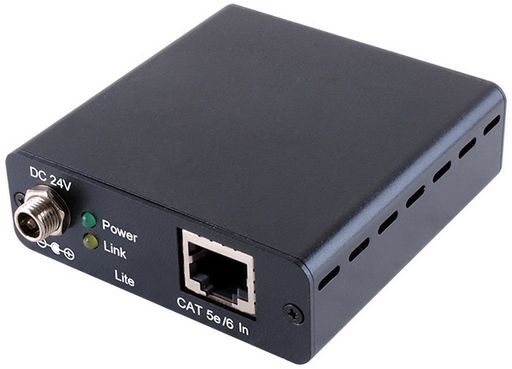

HDMI OVER HDBaseT EXTENDER 4K30 - CYPRESS
UP TO 60M WITH IR / RS-232 (No PoC)
SKU code: WES_CH-506RXL_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 - CYPRESS |
| Notes | UP TO 60M WITH IR / RS-232 (No PoC) The HDMI with RS-232 over HDBaseT transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 60m (1080p) and has the added benefit of control through the built-in RS-232 and IR ports. 5V power packs included.HDMI with 3D, 4k×2k supports, HDCP and DVI compliant Supports HDCP repeater and CEC function Simultaneous transmission of uncompressed data over a single CAT6/CAT5e cable up to 60 m/196.8 ft Uncompressed video 1080p, 60 Hz, 36-bit Audio support up to LPCM 7.1CH, Dolby® TrueHD and DTS-HD Master Audio HDBaseT technology support HDMI transmission and IR and RS-232 controlsInstallation friendly HDBaseT 5Play & HTBaseT Lite both allow AV signals to be transmitted over single, standard Category 5e, 6 or 7 UTP cable. Full HDBaseT 5Play allows for the transmission of all 5 services; HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). |
| Description | HDBaseT HDMI over CAT5/6/7 Receiver with RS-232 |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | No |
| Ethernet | No |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-506TXL |
| Cable Length | 60M (@ 1080p) |
| Manufacturer | Cypress |
| IR | Yes |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CH-506RXL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-506RXL |
| SKU | WES_CH-506RXL_1 |
| Brand | Cypress |
