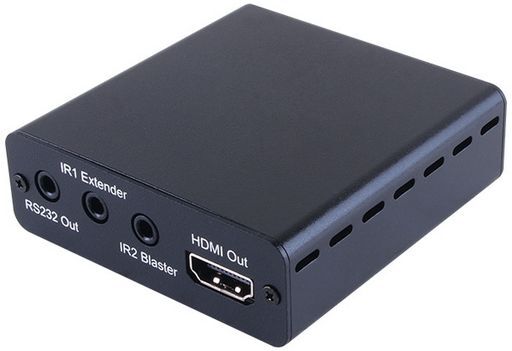

HDMI OVER HDBaseT EXTENDER 4K30 WITH 24V PoC - CYPRESS
UP TO 60M WITH IR / RS-232 / 24V PoC
SKU code: WES_CH-506RXPL_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 WITH 24V PoC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 WITH 24V PoC - CYPRESS |
| Notes | UP TO 60M WITH IR / RS-232 / 24V PoC The HDBaseT-Lite HDMI over CAT5e/6/7 transmitter and receiver can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 60 metres (1080p) with the added benefit of controls through the built-in RS-232 and IR ports. The Power over Cable (PoC) sends power from the transmitter to the receiver. Transmitter includes 24V power pack.Compatible with HDCP and DVI Supports HDMI 3D and 4K×2K features Supports HD resolutions up to 1080p@60 Hz/36-bit Supports distance up to 60 metres through CAT5e/6/7 cable for 3D signal and 40 metres for 4K×2K resolutionSupports PoE (Power over Ethernet) Supports HDMI input up to 15 metres at 8-bit resolution or 10m at 12-bit resolution and output up to 15 metres at 8/12-bit resolution Supports HDCP repeating and CEC bypass Supports RS-232 and IR controls Supports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission HDBaseT allows AV signals to be transmitted over single, standard Category 5e, 6 or 7 cable. Full HDBaseT 5Play allows for the transmission of HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; full HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). |
| Description | HDBaseT HDMI over CAT5/6/7 Receiver with PoE |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | Yes |
| Ethernet | No |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-506TXPL |
| Cable Length | 60M (@ 1080p) |
| Manufacturer | Cypress |
| IR | Yes |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CH-506RXPL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-506RXPL |
| SKU | WES_CH-506RXPL_1 |
| Brand | Cypress |
