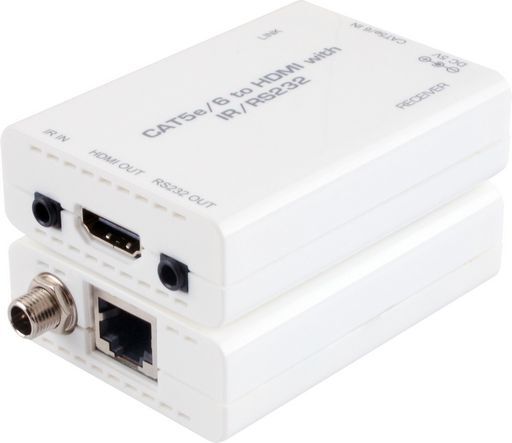

HDMI OVER HDBaseT EXTENDER 4K30 WITH IR & RS-232 - CYPRESS
40M 4K30 SENDER OR RECEIVER WITH RS232 SEND/RETURN
SKU code: WES_CH-513RXL_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 WITH IR & RS-232 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 WITH IR & RS-232 - CYPRESS |
| Notes | 40M 4K30 SENDER OR RECEIVER WITH RS232 SEND/RETURN The HDMI Extender over single CAT5e/6 incorporating RS-232 (send to receiver) and IR signal (return to transmitter). Uncompressed video and audio can be transmitted to distances of up to 60 metres (1080p) and supports High Definition Audio and 3D signals. Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6 cable.HDMI with 3D, 4K×2K support, HDCP and DVI compliantComplies with the HDBaseT-Lite classSupports HDMI 1.4 (including HDCP) over a single CAT5e/6 up to 60mFull HD resolution support (1080p@60Hz/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cableHDMI input up to 15m with 8-bit resolution or 10 m with 12-bit resolutionHDMI output up to 15 m with 8/12-bit resolutionMultiple control interfaces such as RS-232 with baud rate up to 115200/sec and IRSupports HDCP repeater and CEC bypassSupports High Definition LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmissionCompact size with stylish design HDBaseT allows AV signals to be transmitted over single, standard Category 5e, 6 or 7 cable. Full HDBaseT 5Play allows for the transmission of HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; full HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). |
| Description | HDBaseT HDMI over CAT5/6/7 Receiver with RS-232 |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| IR | Yes |
| Cable Length | 60M (@ 1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | - |
| Ethernet | - |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-513TXL |
| EDID | - |
| Extender Cable | CAT5e/6/7 |
| Manufacturer | Cypress |
| Compliance | HDMI 1.3 / DVI 1.0 |
| Interface | Receiver |
| CEC | YES |
| RS232 Extension | Yes |
| IR Extension | Yes |
| SKU No | WES_CH-513RXL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-513RXL |
| SKU | WES_CH-513RXL_1 |
| Brand | Cypress |
