HDMI OVER HDBaseT WALL-PLATE EXTENDER 4K30 - CYPRESS
UP TO 100M WITH IR / RS-232 / LAN / 24V PoC BIDIRECTIONA
SKU code: WES_CH-507RXWPBD_1

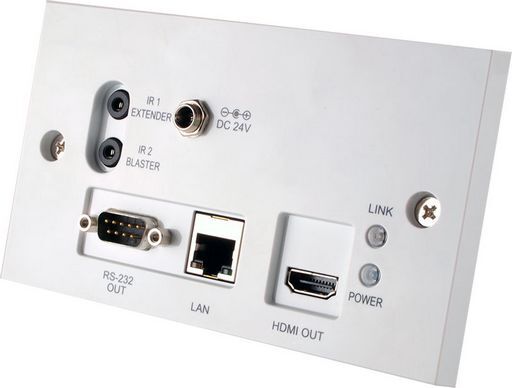

This is a HDMI OVER HDBaseT WALL-PLATE EXTENDER 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT WALL-PLATE EXTENDER 4K30 - CYPRESS |
| Notes | UP TO 100M WITH IR / RS-232 / LAN / 24V PoC BIDIRECTIONAL The HDMI over single CAT5e/6 wall-plate transmitter and receiver set can transmit and receive uncompressed audio/ video over a single run of CAT5e/6 cable up to 100 metres (1080p). Supports 4K30(YUV444) up to 70M. Includes IR, LAN of a data transmission rate of 100Mbps & RS-232 features. This is a true HDBaseT™ 5Play solution. HDMI with 3D, 4K2K support, and HDCP compliant. 24Vdc power can be supplied at either end with Bidirectional PoC.HDMI with 3D, 4K2K support, HDCP & DVI CompliantSupports HDCP repeater and CEC bypassSimultaneously uncompressed data sending over a single 100M/328ft with CAT6 or CAT5e cableSupports uncompressed video of 36/30/24-bit Deep Colour up to 1080p@60HzSupports audio pass-through up to LPCM 7.1CH, Dolby® TrueHD, and DTS-HD Master Audio5Play™ convergence: HDMI, bi-directional PoC, (bidirectional IR & RS232) & LANWall plate design and installation friendly |
| Description | HDBaseT HDMI Receiver wall plate over CAT5/6/7 |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| IR | Yes |
| Cable Length | 100M (@1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-507TXWPBD |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| Manufacturer | Cypress |
| SKU No | WES_CH-507RXWPBD_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-507RXWPBD |
| SKU | WES_CH-507RXWPBD_1 |
| Brand | Cypress |
