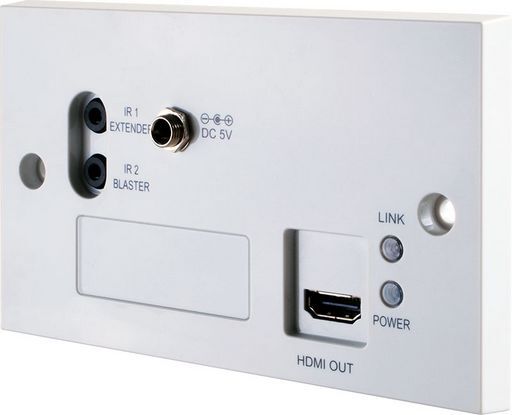

HDMI OVER HDBaseT WALL-PLATE RECEIVER 4K30 - CYPRESS
UP TO 60M WITH IR SEND / RECEIVER
SKU code: WES_CH-514RXWPL_1
This is a HDMI OVER HDBaseT WALL-PLATE RECEIVER 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT WALL-PLATE RECEIVER 4K30 - CYPRESS |
| Notes | UP TO 60M WITH IR SEND / RECEIVER The HDMI over CAT5e/6/7 Wall plate Receiver can accept uncompressed Video/Audio and Bi-directional IR over 60 metres from any HDBaseT Transmitter. It is simple to connect to compatible Transmitter through CAT5e/6/7 for data transmission. 4K60(YUV420), 4K30(YUV444). Local power pack 5Vdc included.HDMI with 3D & 4K2K supported, HDCP and DVI compliantSupports data rate from 250Mbps up to 3GbpsSupports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K2K (3840x2160@30Hz and 4096x2160@24Hz)Supports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)Supports distance up to 70 metres through HDMI to CAT5e/6/7 TransmitterSupports Bi-directional IR controlWall plate design and installation friendly HDBaseT allows AV signals to be transmitted over single, standard Category 5e, 6 or 7 cable. Full HDBaseT 5Play allows for the transmission of HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; full HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). |
| Description | HDBaseT HDMI Receiver wall plate over CAT5e/6/7 (70M) |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| IR | Yes |
| Cable Length | 60M (@1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | - |
| Ethernet | - |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | - |
| Max Res. | 4K @ 30Hz |
| Compatible with | HDBaseT transmitters |
| Manufacturer | Cypress |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| SKU No | WES_CH-514RXWPL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-514RXWPL |
| SKU | WES_CH-514RXWPL_1 |
| Brand | Cypress |
