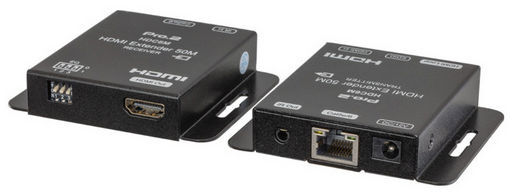

HDMI OVER SINGLE CAT6 EXTENDER KIT - PRO2
EXTENDS 1080P HDMI UP TO 50M WITH HDMI LOOP OUT & POWER
SKU code: WES_HDC6M_1
This is a HDMI OVER SINGLE CAT6 EXTENDER KIT - PRO2 of brand Pro2.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER SINGLE CAT6 EXTENDER KIT - PRO2 |
| Notes | EXTENDS 1080P HDMI UP TO 50M WITH HDMI LOOP OUT & POWER OVER CABLE A neat and simple high definition HDMI mini extender kit. This kit extends your high definition AV sources from Blu-ray DVD Players, and game consoles, etc. up to a maximum of 50m via single solid CAT6 FTP cable through the wall cavities. The EDID feature increases its compatibility with players or displays. It supports a full 1080P high definition and integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.With local HDMI loop out on the transmitter, the device enables local viewing function. Which means you can view the video source locally as well as on the extended end.Compared with the popular model, HDC6L, the compact design makes it easy to be mounted to the back of your TV and the new power over cable feature means it only requires one power supply at the transmitter end, no power supply is required at the receiver, which makes the installation even easier. Compatible with Foxtel iQ4.Compact size, easy mount solution supports 1080P 60HZ@YUV 4:4:4 up to 50 metersTransmits HDMI Audio/Video Signals and IR over a 50m single solid Cat5e/6 Cable;Local HDMI loop out on the transmitter for an easy integration solution.Power over cable, one power supply required on the transmitter;EDID control, copy local or remote EDID settings with the flick of a switch;Distance switch, DIP switch to set network cable distance up to 50m;HDCP compliant;Foxtel iQ4 compatible Supports PCM, Dolby True-HD, DTS-HD master audio;Audio sampling rate up to 48KHz, support 7.1 channels;Supports 24bit Deep Colour; Supports 3D video format;Follows IEEE-568B cable termination standards and solid cables are recommended. A SOLID CAT5/6 cable is recommended, especially if you are rolling out an extension of more than 15 metres. This product may not workwith standard stranded ethernet cable. 60m distance has been tested fine on F/UTP solid cat6 cable. |
| Input | Transmitter: 1x HDMI, 1xIR. Receiver: 1x CAT5e/6, 1xIR |
| Output | Transmitter: 1x CAT5e/6, 1x HDMI (loopout), 1x IR, Receiver: 1xHDMI, 1xIR |
| Max Res. | 1080p |
| HD Audio | Yes |
| HDCP | Yes |
| 3D | Yes |
| Supported Output Resolution | 1080p @ 60Hz |
| Manufacturer | Pro2 |
| SKU No | WES_HDC6M_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | HDC6M |
| SKU | WES_HDC6M_1 |
| Brand | Pro2 |
