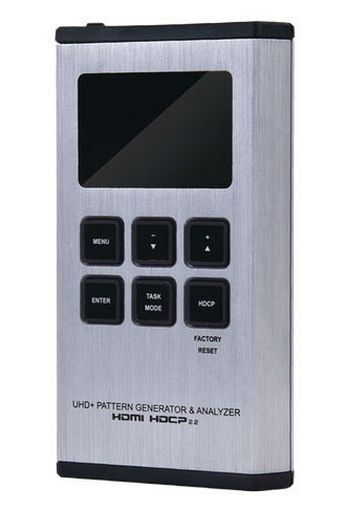

This is a HDMI PORTABLE SIGNAL GENERATOR & ANALYSER 4K60 - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title HDMI PORTABLE SIGNAL GENERATOR & ANALYSER 4K60 - CYPRESS
Notes This portable HDMI Signal Generator & Analyser provides a convenient way to test and verify all aspects of an HDMI signal path, including source and sink. This unit complies with the HDMI 2.0a and HDCP 1.4/2.2 standards. The unit’s Analyzer mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3 for EDID analysis. The unit is powered by a single rechargeable Lithium-ion battery. You may also power and charge the unit through the micro USB port with an external power bank to extend the portable service time. 4K sources can be scaled down to 1080p output in Analyser mode to support a wider range of displays when analyzing high-bandwidth sources. The unit has an integrated OLED display which provides a way to quickly and clearly view the current signal state or the results of signal analysis. This portable handheld design is ideal for both the professional end user and installation engineer alike.HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compliant with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)Source bypass support in Analyser mode4K sources can be scaled down to 1080p in Analyser mode to support a wider range of displays when analyzing a high-bandwidth sourceHDR bypass and analysis supportSource video, audio and timing analysisAnalysis and emulation of EDID dataHDCP and SCDC monitoring functionsHDMI packet analysisAnalyser mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.323 selectable output resolutions available in Test Pattern mode11 selectable static test patterns in Test Pattern modeHDMI 2.0 cable test function including tests for 5V, CEC and hotplug detection supportSupports LPCM 2.0, 5.1, and 7.1 audio output with adjustable sinewave frequencies for each channelComprehensive EDID management support with 10 built-in default EDIDs and 10 user EDIDs copied from sink devicesPowered by a single rechargeable Lithium-ion battery, you may also connect an external USB power bank to the micro USB port to provide extended operation timeOLED display with rapid updates of current status informationSupports optional Windows control software
DescriptionPortable 4K HDR HDMI Signal Generator & Analyser
4KYes
Bandwidth18Gbps
Cable Length5M (4K)
Chassis.Metal
Dimensions80x26x126mm
Input1×HDMI
Max Res.4K@60Hz
Output1×HDMI
Size80x26x126mm
ManufacturerCypress
SKU NoWES_CPHD-V4L_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CPHD-V4L
SKU WES_CPHD-V4L_1
Brand Cypress
