HDMI TO 3G-SDI CONVERTER WITH AUDIO - CYPRESS
TRANSMIT AUDIO & VIDEO ON 3G-SDI
SKU code: WES_CLUX-H2SDIA_1

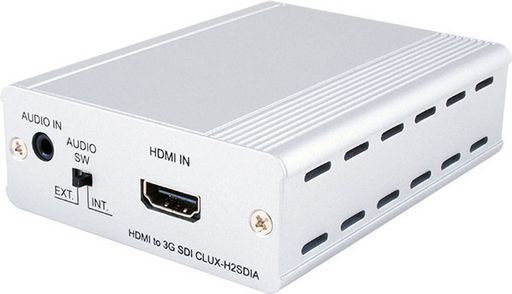

This is a HDMI TO 3G-SDI CONVERTER WITH AUDIO - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI TO 3G-SDI CONVERTER WITH AUDIO - CYPRESS |
| Notes | TRANSMIT AUDIO & VIDEO ON 3G-SDI The CLUX-H2SDIA allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbps to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the HDMI embedded audio, and send to the SDI output. This device supports HDMI input resolution up to 1080p and the signals are then convert in SDI signals.HDMI signal conversion to SDI signalSupports HDMI input resolutions of:- 480i@59.94Hz and 576i- 720p@50/59.94/60Hz and 1080i@50/59.94/60Hz- 1080p@23.98/24/25/29.97/30/50/59.94/60HzOperation at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001GbpsSupports SDI standards of:- SMPTE 259M-C@270Mbps- SMPTE 292M@1.485Gbps and 1.485/1.001Gbps- SMPTE 424M and SMPTE 425M (Level A and Level B)@2.970Gbps and 2.970/1.001GbpsConverts HDMI signals to the following SDI signals:- 480i and 576i to SD-SDI/SMPTE 259M-C- 720p and 1080i to HD-SDI/SMPTE 292M- 1080p to 3G-SDI/SMPTE 424M and SMPTE 425M (Level A and Level B)Supports SDI output distance up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI)Note: This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted. Note: This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted. |
| Description | HDMI to SDI Converter with Audio |
| Input | 1x HDMI |
| Output | 1x SDI |
| Input Video Formats | Digital RGB/YUV |
| Output Video Formats | SD/HD/3G-SDI |
| Supported TV Resolutions | 480-1080p |
| Supported PC Resolutions | VGA-WUXGA (RB) |
| Manufacturer | Cypress |
| Brand. | Cypress |
| SKU No | WES_CLUX-H2SDIA_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CLUX-H2SDIA |
| SKU | WES_CLUX-H2SDIA_1 |
| Brand | Cypress |
