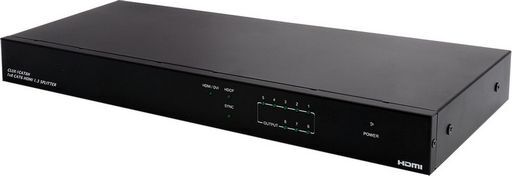

.HDMI TO DUAL CAT6/7 SWITCHING SPLITTER 1080P
.HDMI TO DUAL CAT6/7 SWITCHING SPLITTER 1080P
SKU code: WES_CLUX-1CAT8H_1
This is a .HDMI TO DUAL CAT6/7 SWITCHING SPLITTER 1080P of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .HDMI TO DUAL CAT6/7 SWITCHING SPLITTER 1080P |
| Notes | This 1 by 4 and 1 by 8 CAT6/7 to HDMI splitter allow users to distribute an HDMI source to multiple HDMI displays located in a distance location through the DEMI output ports, and providing a way to send a single source to multiple screens. Furthermore, it can also connect to another CAT6/7 splitter through the CAT6/7 output port to allow you to reach more displays. Long distances transmission over CAT6/7. The CAT6/7 to HDMI splitter also incorporates additional functions like EDID, System Reset, Deep colour and IR systems, etc.Deep colour video 12-bit, 1080p@60 HzHDCP keysets allows each output to work independentlyLPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTSHD Master AudioSupports PC and HDTV resolution from VGA to UXGA and 480i to 1080pSelects EDID from TV mode or STD modeCEC BypassIR remote control extender |
| Description | This 1 by 8 CAT6 to HDMI splitter allows users to distribute an HDMI source to seven HDMI displays located up to 40 metres away. Providing a way to send a single source to eight different screens, it can also connect to another CAT6 splitter through the CAT6 output port, allowing you to send your single HDMI signal to more than the original seven displays. This unit allows users to transmit HDMI signals via CAT6 without compression over long distances. The CAT6 to HDMI splitter also incorporates functions like EDID, System Reset, Deep colour and IR systems. |
| Input | 1x dual CAT6/7 |
| Output | 1x dual CAT6/7, 7x HDMI |
| 3D | Yes |
| CEC | Bypass |
| EDID | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | - |
| ARC | - |
| HEC | - |
| Deep Colour | Yes |
| PoE | - |
| Ethernet | - |
| RS-232 | - |
| Cable Length | 40M |
| Brand. | Cypress |
| Manufacturer | Cypress |
| Interface | RJ45 |
| IR | Yes |
| SKU No | WES_CLUX-1CAT8H_1 |
