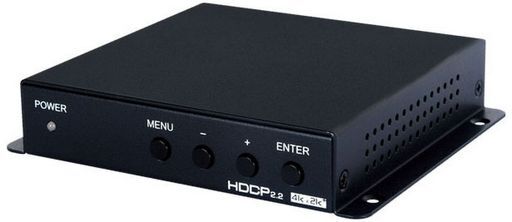

HDMI TO HDMI SCALER 4K60 WITH AUDIO BREAKOUT - CYPRESS
HDMI TO HDMI SCALER 4K60 WITH AUDIO BREAKOUT - CYPRESS
SKU code: WES_CSC-6013_1
This is a HDMI TO HDMI SCALER 4K60 WITH AUDIO BREAKOUT - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI TO HDMI SCALER 4K60 WITH AUDIO BREAKOUT - CYPRESS |
| Notes | This Scaler is designed to convert and scale a wide range of HDMI sources for output to an equally wide array of HDMI resolutions. Input sources are supported at resolutions up to and including 4K@60Hz (4:4:4, 8-bit). Supported output resolutions range from SVGA to 3840×2160@60Hz (4:4:4, 8-bit). The friendly and simple design ensures that the user can set the unit up and quickly get a high quality picture on their display. Additionally, this unit provides analogue stereo breakout audio (LPCM 2.0 sources only) to support the use of external powered speakers. A perfect tool for your HD and UHD signal conversion needs. The unit can be controlled via front panel buttons with an On-Screen Display (OSD).HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compliant with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)Supports 16-bit Deep Color up to 1080p@60HzSupports 12-bit Deep Color up to 4K@60Hz (YUV 4:2:0) & 4K@30Hz (4:4:4)Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMIAnalog stereo audio breakout (LPCM 2.0 sources only)Supports up and down scaling of a wide variety of HDMI source resolutions, from 480p to 4K@60HzProvides EDID management via EDID bypass, 6 built-in EDIDs or 1 user modifiable EDIDControllable via front-panel buttons with OSD |
| Description | 4K60 (4:4:4) 1×1 HDMI Scaler with EDID Management |
| 4K | Yes |
| Bandwidth | 18Gbps |
| Cable Length | 3M (4K) |
| Chassis. | Metal |
| Controller | 1x USB |
| Dimensions | 128x117x25mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 1x HDMI |
| Max Res. | 4K@60Hz |
| Output | 1x HDMI, 1x3.5mm(Stereo) |
| Size | 128x117x25mm |
| Manufacturer | Cypress |
| SKU No | WES_CSC-6013_1 |
