.HDMI V1.2 SPLITTER
HDCP KEYSET & CASCADABLE
SKU code: WES_CHDMI-8_1

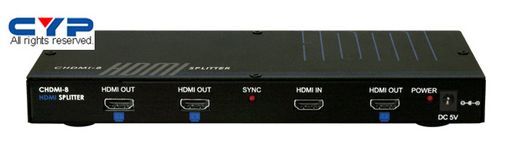

This is a .HDMI V1.2 SPLITTER of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .HDMI V1.2 SPLITTER |
| Notes | HDCP KEYSET & CASCADABLE Cypress CHDMI-2 is a high performance HDMI distribution amplifier. It allows one HDMI source to connect up to 2/4/8 HDMI displays simultaneously.Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display. Splits a HDMI source up to 2/4/8 outputs without signal loss. Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480p to 1080p. Maximum resolution bandwidth 165MHz. Cascaded up to 3 layers, or more depending on your cable quality. Each of the buffered output can run up to 15 Metres @1600x1200. |
| Description | 1x8 HDMI Splitter |
| Input | 1x HDMI |
| Output | 8x HDMI |
| Interface | HDMI |
| Compliance | V1.2 |
| 3D | - |
| CEC | - |
| EDID | - |
| Cascade | Up to 3 |
| Max Res. | UXGA/1080p |
| Chassis. | Metal |
| HDCP | Yes |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| HDMI Input | 1 |
| Page | 13 |
| Cable Length | 15M |
| HDMI Output | 8 |
| Split | 8 Way |
| Outputs | 8 Way |
| Manufacturer | Cypress |
| HD Audio | Yes |
| SKU No | WES_CHDMI-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CHDMI-8 |
| SKU | WES_CHDMI-8_1 |
| Brand | Cypress |
