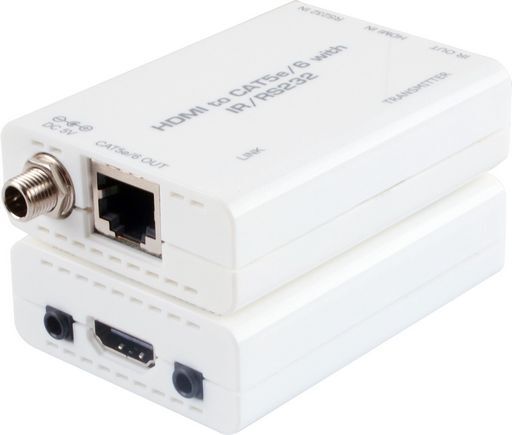

HDMI V1.3 OVER CAT5E/6 EXTENDER WITH IR & RS232
HDMI V1.3 OVER CAT5E/6 EXTENDER WITH IR & RS232
SKU code: WES_CH-513TXL_2
This is a HDMI V1.3 OVER CAT5E/6 EXTENDER WITH IR & RS232 of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI V1.3 OVER CAT5E/6 EXTENDER WITH IR & RS232 |
| Notes | The HDMI 1.3 Extender over single CAT5e/6 incorporating IR and RS-232 signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 metres (1080p), or 40 metres for 4K x 2K resolution and, High Definition Audio and 3D signals support. Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6 cable.HDMI with 3D, 4K×2K support, HDCP and DVI compliantComplies with the HDBaseT Technology (Lite Version) Supports HDMI (including HDCP) over a single CAT5e/6 up to 60mFull HD resolution support (1080p@60Hz/36-bit), 3D and 4K×2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cableHDMI input up to 15M with 8-bit resolution or 10M with 12-bit resolutionHDMI output up to 15M with 8/12-bit resolutionMultiple control interfaces such as RS-232 with baud rate up to 115200/sec and IRSupports HDCP repeater and CEC bypassSupports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionCompact size with stylish design |
| Description | HDBaseT HDMI over CAT5/6/7 Transmitter with RS-232 |
| Input | 1x HDMI |
| Output | 1x CAT5e/6/7 |
| Interface | Transmitter |
| Compliance | HDMI 1.3 / DVI 1.0 |
| 3D | Yes |
| CEC | YES |
| EDID | - |
| Max Res. | 4K @ 30Hz |
| HDCP | Yes |
| PoE | - |
| Ethernet | - |
| Cable Length | 60M (@ 1080p) |
| Extender Cable | CAT5e/6/7 |
| Compatible with | CH-513RXL |
| Manufacturer | Cypress |
| Type | Transmitter |
| IR | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CH-513TXL_2 |
