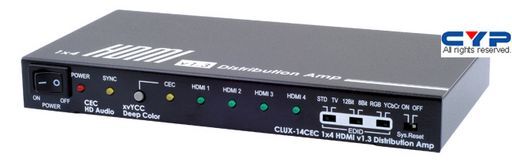

HDMI V1.3 SPLITTER 1080P WITH CEC FUNCTION - CYPRESS
HDMI V1.3 SPLITTER
SKU code: WES_CLUX-14CEC_1
This is a HDMI V1.3 SPLITTER 1080P WITH CEC FUNCTION - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI V1.3 SPLITTER 1080P WITH CEC FUNCTION - CYPRESS |
| Notes | HDMI V1.3 SPLITTER From a single HDMI source you can transfer Deep Colour (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio with high bandwidth up to 225MHz (6.75Gbps) to 2/4/8 HDMI outputs. Besides splitting and distributing, it also does signal amplification and equalisation, providing high I/O performance on both audio and video. On top of that, this device provides additional features like CEC, EDID function for maintaining superb image quality.HDMI 1.3, HDCP1.1 and DVI1.0 compliant Receiver. Deep colour video up to 12bit, 1080p@(24/60)Hz. Simultaneously displays one HDMI source onto eight HDMI displays. HDCP keysets allow each output to work independently. Supports DVI source/display via HDMI to/from DVI adaptor cable. LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Audio. PC and HDTV resolutions from VGA to UXGA and 480i to 1080p. 1080p/8bits resolution: the Input/Output source up to 10/10 metres.Supports EDID bypass, xvYCC and CEC bypass. CEC function support. System standby will be activated when last TV is switched to standby. |
| Description | 1 by 4 HDMI v1.3 Splitter |
| Input | 1x HDMI |
| Output | 4x HDMI |
| Interface | HDMI |
| Compliance | V1.3 |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| Cascade | - |
| Max Res. | UXGA/1080p |
| Chassis. | Metal |
| HDCP | Yes |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| HDMI Input | 1 |
| Page | 14 |
| HDMI Output | 4 |
| Cable Length | 6-10M |
| Manufacturer | Cypress |
| HD Audio | Yes |
| SKU No | WES_CLUX-14CEC_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CLUX-14CEC |
| SKU | WES_CLUX-14CEC_1 |
| Brand | Cypress |
