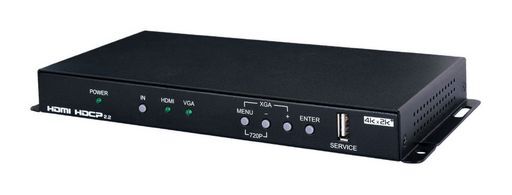

HDMI/VGA TO HDMI SCALER 4K60 WITH AUDIO INSERTION- CYPRESS
HDMI/VGA TO HDMI SCALER 4K60 WITH AUDIO INSERTION- CYPRE
SKU code: WES_CSC-V101P_1
This is a HDMI/VGA TO HDMI SCALER 4K60 WITH AUDIO INSERTION- CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI/VGA TO HDMI SCALER 4K60 WITH AUDIO INSERTION- CYPRESS |
| Notes | This scaler is designed to scale and convert HDMI, PC or Component video sources to an HDMI output with optional analog audio insertion. Scaled output resolutions from VGA (640×480@60Hz) all the way up to 4K@60Hz (4:4:4, 8-bit) are available. HD component video (YUV) is supported with the use of a 3-RCA to 15-pin adaptor via the VGA input. If desired, external audio can be inserted into the HDMI output from the analog stereo 3.5mm input associated with each input. This unit has a comprehensive OSD menu which allows the user to select from a variety of output resolutions as well as to adjust the video settings to provide the best picture quality.HDMI with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compatible with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliant1 HDMI and 1 VGA input port, each with associated 3.5mm analog stereo portsHD component video (YUV) is supported with the use of a 3-RCA to 15-pin adapter via the VGA input1 HDMI outputAdvanced 4K upscaling and downscaling engineSupports digital PC and HD resolutions up to 3940×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)Supports analog PC input resolutions from VGA to WUXGA (RB) and analog HD input resolutions from 480i to 1080p60Supports Deep Color up to 1080p60, 48-bitSupports pass-through of LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream audio formatsAnalog stereo audio insertion support via 3.5mm mini-jack portsIntegrated EDID managementOptional automatic input selection on source lossOutput picture adjustments include: contrast, brightness, hue, saturation, sharpness, noise reduction, RGB levels and aspect ratioControllable via front panel buttons with OSD |
| Description | 4K60 (4:4:4) 2×1 HDMI/VGA to HDMI Scaler with Audio Insertion |
| 4K | Yes |
| Bandwidth | 18Gbps |
| Cable Length | 2M (4K) |
| Chassis. | Metal |
| Dimensions | 231x117x25mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 1x HDMI, 1x VGA, 2x3.5mm(Stereo) |
| Max Res. | 4K@60Hz |
| Output | 1xHDMI |
| Size | 231x117x25mm |
| Manufacturer | Cypress |
| SKU No | WES_CSC-V101P_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CSC-V101P |
| SKU | WES_CSC-V101P_1 |
| Brand | Cypress |
