This is a HDMI VIDEO WALL OVER IP PoE TRANSMITTER of brand LevelOne.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

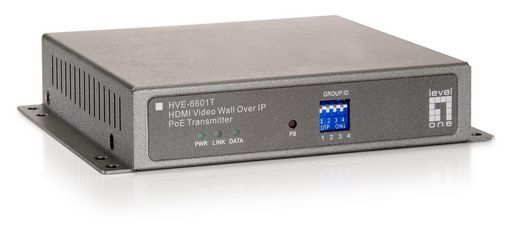

Title HDMI VIDEO WALL OVER IP PoE TRANSMITTER
Notes HDMI OVER IP The LevelOne HVE-660 Series is an innovative HDMI-over-IP Video Wall Distribution Solution. Designed with transmitting units (HVE-6601T) and receiving units (HVE-6601R), it is exceptionally scalable, offering any combination up to 8 x 8 matrix video wall arrangement. The HVE-660 Series enriches video wall connectivity options to public premises such as sports bars, cinemas, train stations, or high demand monitoring sites such as emergency response centres, security organisations, or traffic monitoring units.Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LANMulticasting and broadcasting architecture, adding more displays without adding LAN bandwidth loadingUp to 8 transmitters and 64 receivers possible in a single Video Wall systemTransmits HDTV resolutions up to 1080p.Transmits an HDMI signal over one CAT5e/6/7 cable.HDMI 1.3b and HDCP compliantSupport Point-to-Point, Point-to-Many and Many-to-Many network configurationDual power input: 802.3af compliant PoE & DC5VMulticasting group with Gigabit Ethernet switch (required 802.1Q VLAN & IGMP function)Built-in DIP switch to change Group ID and Utility for remotelyRS-232 Control Pass-Thru to control HDMI display from transmitter sidePlug and Play installation, free bundle utility for advance setting
DescriptionHDMI Video Wall over IP PoE Transmitter
Weight0.8
Dimensions28x114x140mm
OEM591004
UPC846359019856
PackagingCorrugated Box
ContentHVE-6601T
ColourIron-gray
ManufacturerLevelOne
SKU NoWES_HVE-6601T_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN HVE-6601T
SKU WES_HVE-6601T_1
Brand LevelOne
