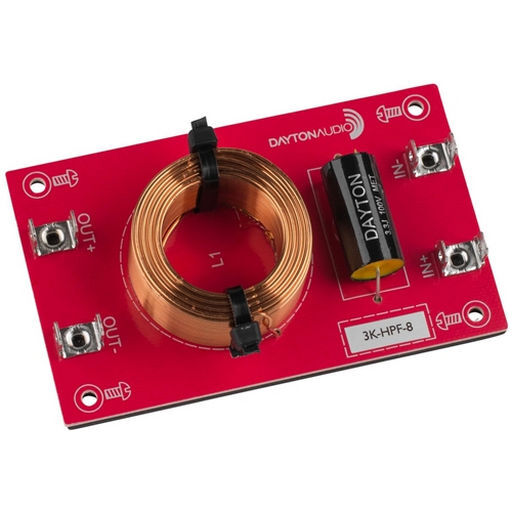

HIGH PASS SPEAKER CROSSOVER - DAYTON AUDIO
USE IN COMBINATION WITH OTHER HIGH-PASS AND LOW-PASS CRO
SKU code: WES_3K-HPF-8_1
This is a HIGH PASS SPEAKER CROSSOVER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HIGH PASS SPEAKER CROSSOVER - DAYTON AUDIO |
| Notes | USE IN COMBINATION WITH OTHER HIGH-PASS AND LOW-PASS CROSSOVERS This 2nd order (i.e. 12 dB per octave) high pass Linkwitz-Riley filter from Dayton Audio passes frequencies above 6,000 Hz and can easily be combined with other filters in this series to create 2-way or even 3-way crossover networks. Designed for use with 8 ohm drivers. - High quality poly capacitor in series with the driver High quality components are securely fastened to PCB Frequencies can be staggered or overlapped for desired response High quality red PC board with EVA backing to prevent shorts and vibration Dual 0.205 terminals at each connection point for easy parallel wiring - Dayton Audios premium inline passive filters make it easy to limit a drivers frequency response to a specific desired bandwidth. By using combinations of these filters you can create complete 2-way or 3-way crossovers. The components used in each of these are the same high quality you have come to expect from Dayton Audio. This 12dB/octave 6,000 Hz high pass filter can be combined with our 6,000 Hz low pass for a 2nd order Linkwitz-Riley crossover, which sums for flat transfer function across the crossover frequency. In addition, you can stagger or overlap filter frequencies to overcome peaks and dips in individual drivers frequency response to create crossovers that acoustically sum flat across the crossover point. Specifications: Type: High Pass Filter Frequency: 6,000 Hz Impedance: 8 ohms Dimensions: 100 mm x 60 mm Power handling: 250 watts Series capacitor value: 1.7 µF Parallel inductor value: 0.42 mHDayton Audios premium inline passive filters make it easy to limit a drivers frequency response to a specific desired bandwidth. By using combinations of these filters you can create complete 2-way or 3-way crossovers. The components used in each of these are the same high quality you have come to expect from Dayton Audio. This 12dB/octave 6,000 Hz high pass filter can be combined with our 6,000 Hz low pass for a 2nd order Linkwitz-Riley crossover, which sums for flat transfer function across the crossover frequency. In addition, you can stagger or overlap filter frequencies to overcome peaks and dips in individual drivers frequency response to create crossovers that acoustically sum flat across the crossover point. Specifications: Type: High Pass Filter Frequency: 6,000 Hz Impedance: 8 ohms Dimensions: 100 mm x 60 mm Power handling: 250 watts Series capacitor value: 1.7 µF Parallel inductor value: 0.42 mHHigh quality poly capacitor in series with the driverHigh quality components are securely fastened to PCBFrequencies can be staggered or overlapped for desired responseHigh quality red PC board with EVA backing to prevent shorts and vibrationDual 0.205 terminals at each connection point for easy parallel wiring |
| Description | 3K-HPF-8 High Pass Speaker Crossover 3,000 Hz 12 dB/Octave |
| QTY | Each |
| Manufacturer | Dayton Audio |
| SKU No | WES_3K-HPF-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 3K-HPF-8 |
| SKU | WES_3K-HPF-8_1 |
| Brand | Dayton Audio |
