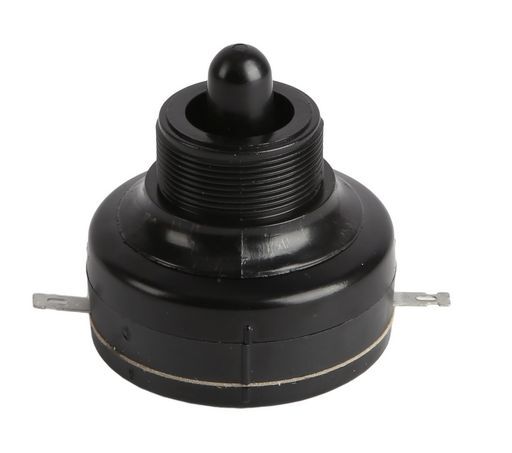

This is a HORN DRIVER ONLY of brand Motorola.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title HORN DRIVER ONLY
Notes KSN1142A REPLACEMENT - REQUIRES HORN Drop-In replacement for KSN1142ASuits Motorola CTS 10” and 15” Horns.35mm 1-3/8” 18-TPI ThreadedPiezo coupled paper conePopular PA tweeter
DescriptionHORN DRIVER ONLY
TypeHorn
Size1'
Price Typeeach
Power400W
Freq.1.8KHz - 30KHz
Sens.92dB
MadeOriginal
ManufacturerMotorola
Impedance (Ohm)Piezo
Power (RMS)200+ Watt
Inch1
Hole-
Fo-
Fs-
Re0.3uF
QTY1
Mount18-TPI
Coil22mm
Depth38mm
Prms400W
Diam.62mmØ
Dimensions62mmØ
SPL92dB
OEMKSN1142A
ImpedancePiezo
ZnPiezo
SeriesPiezo
MaterialsPiezo
Mag.Piezo 22mm
SKU NoWES_KSN1142_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN KSN1142
SKU WES_KSN1142_1
Brand Motorola
