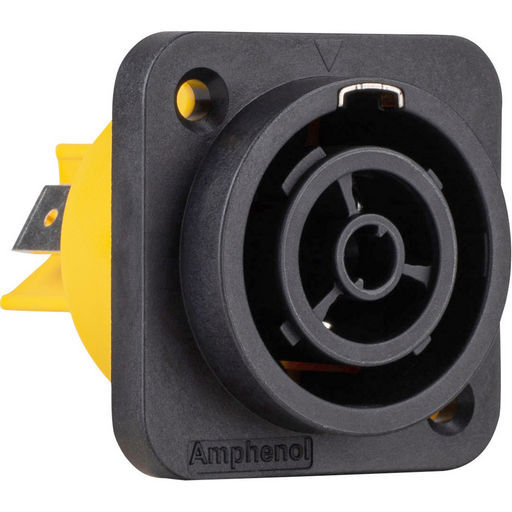

HPT FEMALE OUTLET AC POWER PANEL MOUNT
AMPHENOL HPT
SKU code: WES_HPT-3-FD_1
This is a HPT FEMALE OUTLET AC POWER PANEL MOUNT of brand Amphenol.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HPT FEMALE OUTLET AC POWER PANEL MOUNT |
| Notes | AMPHENOL HPT The Amphenol HPT-3-FD is a locking 20A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The Amphenol HPT-3-FD TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. The HPT-3-FD is a panel mount plug with three 1/4 disconnect terminals.Heavy duty, UV-resistant, sealed power connector for harsh and demanding environmentsOutdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)True mains connector with breaking capacity (CBC)Easy and reliable twist-lock systemUL498 certified for safetyENEC certified according to IEC 60320 Note: Compatible with powerCON AC outdoor waterproof connectors. |
| Description | Female outlet AC power panel mount jack - spade lug termination |
| Cable | 7.5-16.0 mm O/D |
| Contact | Silver plating |
| Current | 16A max |
| Gender | Female |
| Housing Colour | Black, Yellow |
| Housing Material | Thermoplastic |
| IP Rating | IP65 |
| Manufacturer | Amphenol |
| Positions | 3 |
| Volts | 250V |
| Series | HPT |
| Type | Power |
| SKU No | WES_HPT-3-FD_1 |
