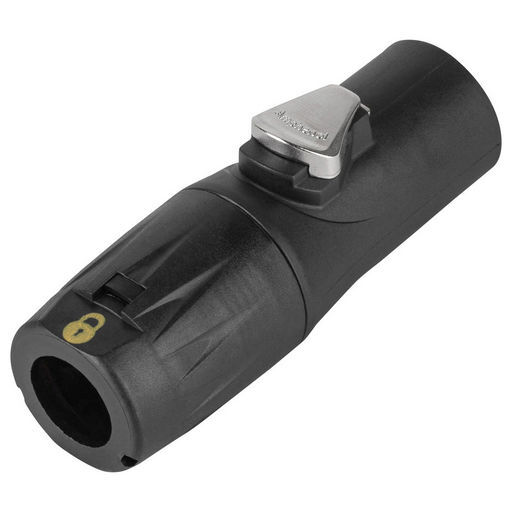

HPT MALE OUTLET AC POWER CABLE PLUG
AMPHENOL HPT
SKU code: WES_HPT-3-M_2
This is a HPT MALE OUTLET AC POWER CABLE PLUG of brand Amphenol.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HPT MALE OUTLET AC POWER CABLE PLUG |
| Notes | AMPHENOL HPT The Amphenol HPT-3-M is a locking 20A true mains connector. It replaces 3 pole AC equipment couplers and provides a very rugged solution in combination with a locking device to guarantee a safe power connection. The unique locking strain relief construction helps prevent accidental exposure to electrical wires. The HPT-3-M also features an IP65 rating (in mated condition) with no washers, gaskets, or other special treatment required. It is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. The HPT-3-M is a cable mount receptacle with screw terminals.Heavy duty, UV-resistant, sealed power connector for harsh and demanding environmentsOutdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)True mains connector with breaking capacity (CBC)Easy and reliable twist-lock systemUnique Amphenol cable retentionUL498 certified for safetyENEC certified according to IEC 60320 Note: Compatible with powerCON AC outdoor waterproof connectors. Don't screw on the back shell until all the wires are secure. Once you start screwing the back shell on, a key must be used to unscrew it off. |
| Description | Male outlet AC Power Cable Plug, Screw Termination, Locking Backshell |
| Cable | 6-12mm O/D |
| Contact | Silver plating |
| Current | 16A max |
| Gender | Male |
| Housing Colour | Black |
| Housing Material | Thermoplastic |
| IP Rating | IP65 |
| Manufacturer | Amphenol |
| Positions | 3 |
| Volts | 250V |
| Series | HPT |
| Type | Power |
| SKU No | WES_HPT-3-M_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | HPT-3-M |
| SKU | WES_HPT-3-M_2 |
| Brand | Amphenol |
