This is a replacement . It is suitable for replacing spare parts for ILVE Oven.

SALIN is a leading Australian appliance spare parts distributor specializing in ILVE appliances. We take pride in our ability to bring hard-to-find ILVE spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our ILVE range is genuine.

TECHNICAL SHEET

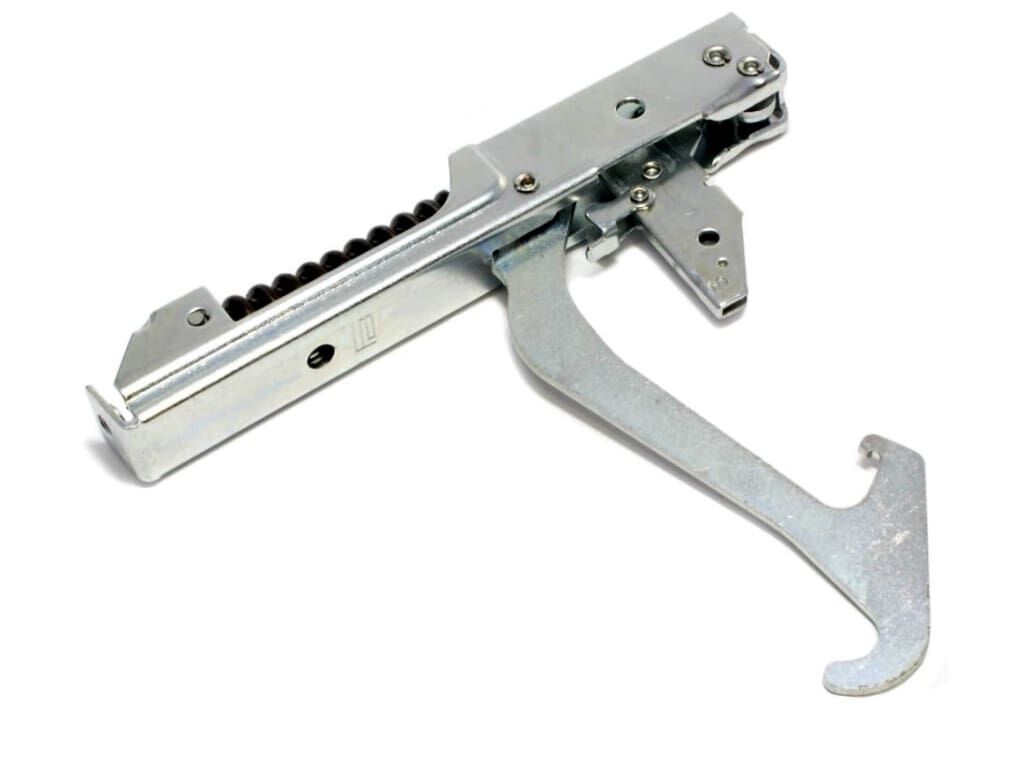

TitleILVE Oven Door Hinge for Large Ovens 90cm & Triple Glazed Doors - A/028/45
Part NumberA/028/45
Suitable ForOven
Compatible BrandsIlve
Notes

Part codes: A/028/45 A02845

Price is per hinge.

REPLACE BOTH. Buying one new hinge will put strain on the hinges as they will "fight" for lack of a better word, one another.

Suits:

700CMP, 700WMP, 600SSXMP, 600SXP, 600SPY, 600STC, 600SV, 800LMP, 800WMP, 800TMP, 900WMP, p90fnmp,
900LMP, 900CMP, 900NMP, 948SSXMP, 948SSTCMP, 948NMP, JC806MP, JC80MP/L, MJC90MP, JC906MP
M120FMP, MT120FMP, M150FMP, MT150FMP, M90FMP, MT90FMP, M906MP, MT906MP, MTE90MP, ME90MP
MCE90MP, MTI90MP, MI90MP, MCI90MP, P901MP, PL120FMP, PW120FMP, PF120FMP, PN120FMP LE80MP
PWE80MP, PFE80MP, PNE80MP, PL90, PW90, PF90, PN90, PL90FMP, PE90FMP, PN90FMP, PL906MP, PW906MP
PF906MP, PN906MP, T906WMP, T906LMP, T906NMP, T90LMP, T90WMP, T90FLMP, 9FWMP, TD90CWM, T90CLMP , jc80fwmp/i, 864pcmp, PW80MP/01,

600SPY, 600STC, 600TC, PL120BMP, PW120BMP, PF120BMP, PN120BMP, PL150FMP, PW150FMP, PF150FMP, PN150FMP, 800LMP, 800WMP 600WPY, 600CPY, 700CMP, 700WMP, 700MP, M90FMP, MT90FMP, M906MP, MT906MP, 900VG, 900LVG, 900TCE3, 900WMP, 900LMP, 900CMP, 948SSXMP, 948SXMP, 948SSTCMP, 948NMP, PL90FMP, PW90FMP, PF90FMP, PN90FMP, PL90FVG, PW90FVG, PF90FVG, PN90FVG, P90IMP, PL906MP, PW906MP, PF906MP, PN906MP, PLE90MP, PWE90MP, PFE90MP, PNE90MP PL90 PW90 PF90 PN90 T-90L-MP T-90W-MP T-90FL-MP T-90FW-MP T-90L-VG T-90W-VG T-90FL-VG T-90FW-VG T-90CW-MP T-90CL-MP T-90CL-VG T-90CW-VG T-906W-MP T-906L-MP T-906N-MP T-906W-VG T-906L-VG 900TMP, 900WMP, 900LMP, 900CMP,

New style triple glazed door (2004 onwards) Ilve oven model JC80LM/1 948SMP 948SXMP/1 P90FWNP/1 PE90WMP/I ,T90WMP/S,JC90WMP JC806WMP/1 ,   jk906wv jc80/6wmp/1   IL054 PF90 PL90 PN90 PW90, HINGE - ILVE PL PW PF PN - 90" 864PCM, P90FWMP/1 serial # 08500527, 700WMP/I, 900NMP, T90MP, P90CCMP p900fwmp/1 S/N 09500192 00531227,
Hinge has "5D" stamped on the main arm and "3" on the smaller lower arm.

 SUITABLE FOR OVENS MANUFACTURED AFTER 2004 SUITS BOTH SIDES

NEW STYLE ILVE OVEN DOOR HINGE CAN BE USED IN SOME NEW STYLE TRIPLE GAZED 900MM ILVE OVENS WITH SINGLE GLAZED OVENS AND MOST ILVE 600MM OVENS WITH TRIPLE GLAZED OVEN DOORS

SKU NumberSVE_0000480
