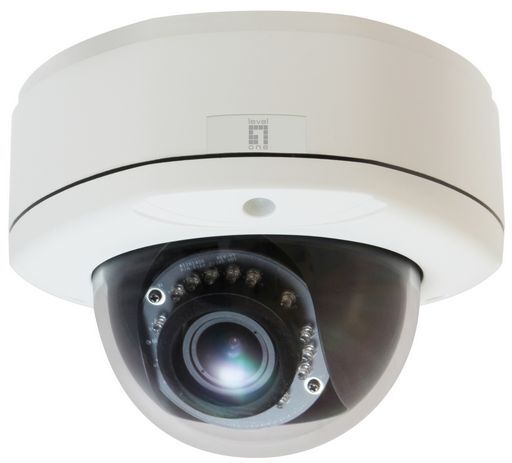

This is a IP CAMERA DOME VARIFOCAL - LEVELONE 5M of brand LevelOne.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title IP CAMERA DOME VARIFOCAL - LEVELONE 5M
Notes IP67 OUTDOOR WITH IR 5.0M (2592 x 1944) Weatherproof IP67-rated (-40°C to 50°C) for harsh environments. Features WDR to enhance visibility extremely bright or dark viewing. Vandal-proof IK10-rated housing. Built-in infrared LEDs 30 metres. Power support: PoE (IEEE 802.3af). Built-in Micro SDHC/SDXC card Free video surveillance and CMS software with 64-channel license 70º to 28º manual zoom. 117x150mmØ5-Megapixel (2592 x 1944) high-definition resolutionWeatherproof IP67-rated (-40°C to 50°C) for harsh environmentsFeatures WDR to enhance visibility extremely bright or dark viewingVandal-proof IK10-rated housingBuilt-in infrared LEDs for night viewing up to 30 metresRemovable IR-cut filter for day and night surveillanceCompression: H.264/MJPEG, Power support: PoE (IEEE 802.3af)Built-in Micro SDHC/SDXC card slot for local storageFree video surveillance and CMS software with 64-channel license
DescriptionFixed Dome Network Camera, 5-Megapixel, Outdoor, PoE 802.3af, Day & Night, IR LEDs, WDR
Size150x117x150mm
PowerPoE
FOV69.2° - 28.2°
Lens2.8 ~ 12mm Vari-Focal
LUX0.1
CCD5.0M CMOS 1/3.2'
Resolution5.0M
OutdoorIP67
IR30M
Lens typeVari-focal
ItemCamera
StyleDome
IPYes
ProtocolIP
Camera TypeDome
Pixels2592x1944px
Weight1.032
Dimensions151x151x117mm
OEM57103607
UPC846359034385
FlagApproved
ContentFCS-3083 Screw Kit Quick Installation Guide Resource CD (User Manual, Utility, QIG)
SuitsFCS-3086-V1 FCS-3084-V2 FCS-3073-V1 FCS-4202-V1 FCS-3087-V1 FCS-3085-V1 FCS-3090-V1 FCS-4203-V1 FCS-3098-V1 FCS-3096-V1 FCS-3055-V1 FCS-3082-V1 FCS-3306-V1 FCS-3304-V1 FCS-3072-V1 FCS-3307-V1 FCS-3305-V1 FCS-3102-V1 FCS-3097-V1 FCS-3302
PackagingGeneric Corrugated Box
ManufacturerLevelOne
Colourwhite
SKU NoWES_FCS-3083_1
