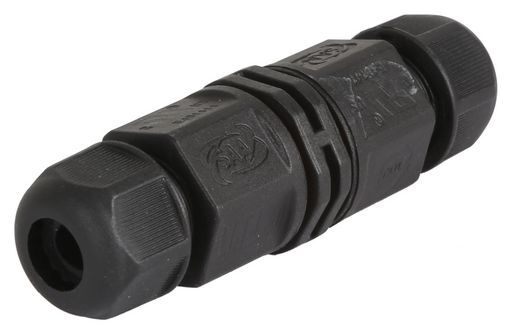

This is a IP68 WATERPROOF POWER CORD CONNECTORS of brand CLA.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title IP68 WATERPROOF POWER CORD CONNECTORS
Notes 3 TERMINALS Waterproof IP68 power cable joiner 3x Screw terminals 4mm wire 380V 25A Cable outside diameter 6-10mmØ Nylon glass fibre reinforced PA66+GFV0 Can be silicone gell flooded All approvals SAA RU RoHSCopper Cabling max 4mm braided Screw Terminal Material: Brass with Ni Plated High Temperature rating: -40°C ~ +105°C Silicon Gel gasketIP rating: IP68Nylon glass fibre reinforced (PA66 + GF V0) Current Rating: 25AVoltage Rating: 380V/ACContact Resistance: 100Mohm at 500VBreakdown Voltage: 1500V/1Min 5mASuits circular cable diameter: 6.5mm 10.0mmIf using flat sheathed cable, connector ends need to be sealed with waterproof compound
Cable6-10mmØ
IP RatingIP68
Voltage380Vac
Current25A
SplitConnector
ManufacturerCLA
SKU NoWES_WPC001_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN WPC001
SKU WES_WPC001_1
Brand CLA
