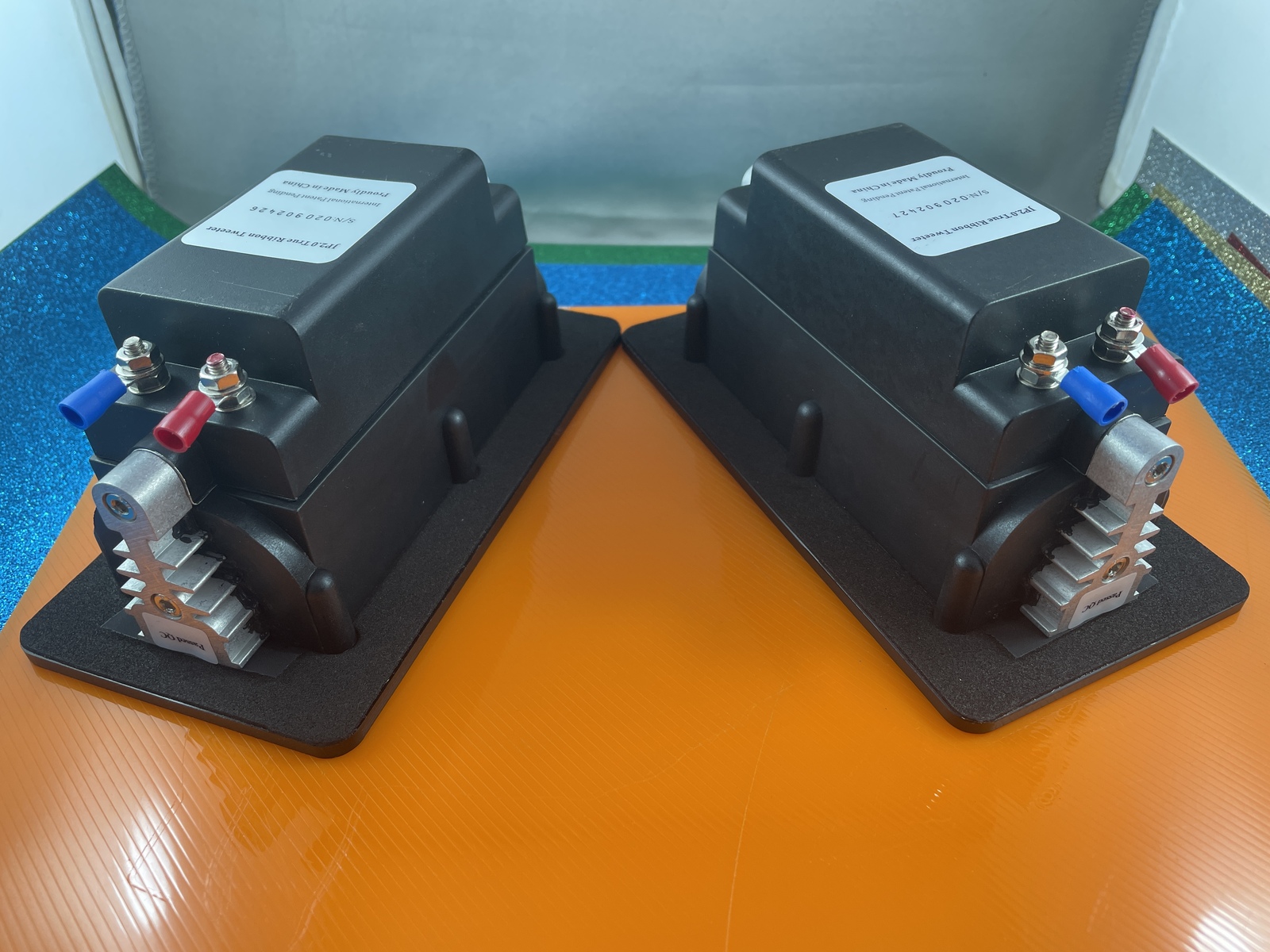

JP 2.0 RIBBON TWEETERS FOUNTEK - SOLD IN MATCHED PAIRS
5 ULTRA-THIN VERTICAL RIBBON TWEETER MATCHED-PAIR
SKU code: WES_JP2.0BK_1
This is a JP 2.0 RIBBON TWEETERS FOUNTEK - SOLD IN MATCHED PAIRS of brand Fountek.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | JP 2.0 RIBBON TWEETERS FOUNTEK - SOLD IN MATCHED PAIRS |
| Notes | 5 ULTRA-THIN VERTICAL RIBBON TWEETER MATCHED-PAIR This is a vertical, double height version of the traditional JP3.0 unit Super-Thin 0.009mm aluminium strip in a double height optioned package. Super-strong Neodymium offers extra efficiency and linear field density. Extremely thin diaphragm for maximising signal fidelity and extra response Low distortion factor, good power-handling capabilities, flat impedance. High linear impedance and amplitude response over a very broad range. Attractive silver rough-finish aluminium face plate with rubber grommet. Quality polycarbonate package with low stray flux for close to TV use. Recommended minimum crossover frequency is 2KHz 3rd Order (-18dB) Higher crossover frequency will give higher system total power handling Ribbon mass 25mg, 960mm² 8x120x0.009mm Super strong 0.6 Tesla Neodymium magnet Impedance 7 Ohm, DC 0.02 ohm [Beware!]Sensitivity 98dB1.4KHz to 40KHz and aboveResonance frequency 440HzPower 17W Normal, 40WMax Fascia 150x70mmUltra-thin aluminium5” (120mm) Ribbon Pair:SOLD IN MATCHED PAIRSSuper strong Neodymium magnet for high efficiency Build-in impedance conversion transformer Effective from 1,400Hz upwards due to the large diaphragm area and low self-resonance. Extremely thin diaphragm (0.009mm Aluminium foil) guarantees a high degree of signal fidelity and broad frequency response. Low distortion factor, good power-handling capabilities, high linear impedance and amplitude frequency response and the broad frequency response range. Flat impedance from 1,000 to 40,000Hz Requires 18dB Crossover |
| Description | FOUNTEK RIBBON TRANSDUCERS - INTRODUCTION |
| Type | Ribbon |
| Size | 4.7' |
| Price Type | Pair |
| Power | 40Wmax |
| Colour | Black |
| Impedance | 7Ω |
| Depth | 75mm |
| Mag. | 0.6T |
| Sens. | 98dB |
| Re | 0.02Ω |
| Sd | 960mm² |
| Pmax | 40W |
| Fs | 440Hz |
| Zn | 7.0Ω |
| Diam. | 165x85mm |
| Manufacturer | Fountek |
| Power (RMS) | 0-50 Watt |
| Hole | 144x61mm |
| Prms | 17W |
| QTY | 2 |
| Weight | 25mg |
| Inch | 4.7 |
| Dimensions | 70x150mm |
| Impedance (Ohm) | 8 ohm |
| Materials | Aluminium |
| Brand. | Fountek |
| SKU No | WES_JP2.0BK_1 |
