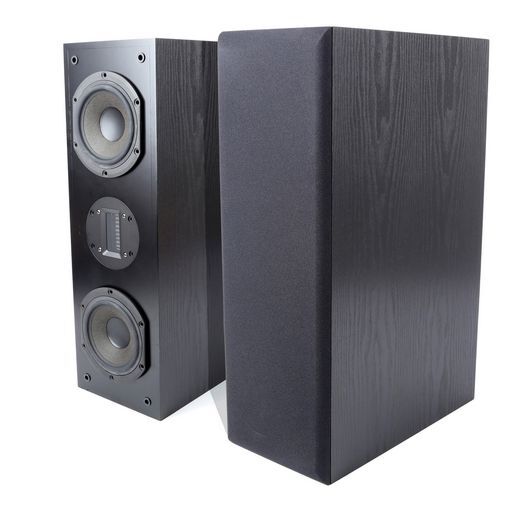

This is a KIT260 STEREO PAIR COMPLETE KIT of brand Fountek.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title KIT260 STEREO PAIR COMPLETE KIT
Notes USING THE FOUNTEK JP3.0 RIBBON SUPER TWEETERS D’Appolito MTM design offers a very high 92.5dB efficiency with pin-point imaging for a beautifully accurate sound stage. Complete Kits supplied in pairs for the stereo front channel. Includes fully assembled cabinets, grilles, drivers, all hardware & assembled crossovers. Sold in stereo pairs.“...These unique speakers are among the very best kit speakers that money can buy. Two separate stereo pairs of loudspeakers are presented, KIT260 & KIT360. In addition, a centre channel variant of the KIT260, the 260C was designed to complement the KIT260 and KIT360 for high-end Home Theatre A/V systems or for a high performance stereo system. Alternatively, you may decide on a mix of the HD260 (front) and HD360 (rear) together with the HD260C for the centre front channel. Whichever approach you take, you can be sure that you will be getting a sensational speaker system. Make no mistake, these ribbon units are the finest tweeters we have ever heard. They are so clean in their definition and the pin-point localisation of instruments in a stereo spread has to be heard to be believed. On top of that, these speakers have very low distortion - measured at around 0.3% THD at 1kHz and 1 watt...” Leo Simpson. Silicon Chip. December 2007 www.siliconchip.com.auSPECIFICATIONS FOR KIT260 Frequency Range 44Hz-40kHz (On Axis) Efficiency (Averaged) 92.5dB SPL (1M/2.83Vrms) Nominal Impedance 4 Ohms Recommended power 5 to 120W Unclipped program material Harmonic Distortion THD 0.3% @ 1 Watt (2.83Vrms) 1kHz Relative Phase Coherence ±30° 400Hz to 10kHz Crossover Network No Soldering required. Finished ready to go. Internal Wiring High Quality OFC 384 Strand Low-Capacitance Quick-Install Push-On connections Speaker terminals 4mm Dual gold plated binding posts (x4) For single or Bi-Wire/amplifier connections Crossover Filter 2-Way Off-Set Bessel/Butterworth Linear-Phase Crossover Frequency 3.8kHz Crossover Low Pass 2nd Order 12dB/Octave Low Pass Crossover High Pass 3rd Order 18dB/Octave High Pass Mid-Bass Peerless 832873 Woofer 5” Nomex Cone Cast Alloy Frame with inverted dust cap Tweeter Fountek JP3.0 Ribbon Dimensions 555x180x*365mm (*380mm w/ grill) Weight 15Kg each. Sold in stereo pairs
Description5' MTM Ribbon Kit Black Vinyl
TypeVinyl
Size180(w)x555(h)x365(d)mm
Price TypePair
Power5 to 150W
Freq.47Hz - 40KHz
ColourBlack
QTY2
Weight15Kg
Impedance4Ω (3.6Ω Re)
GrilleYes
Sens.92.5dB
Woofer832873
ManufacturerFountek
SuitsSpeaker Stand
Crossover3.8KHz 12/18dB/Oct
TweeterJP3.0
MaterialsMDF+Vinyl
Impedance (Ohm)4 ohm
Power (RMS)60Wrms
Inch5'
Slope12dB/18dB
SKU NoWES_KIT260BV_1
