Kleenmaid & Speed Queen Top Load Washing Machine Drain Hose - Electric Pump Models

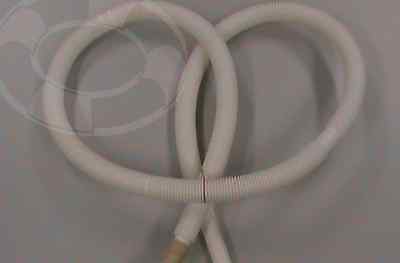

This is the genuine Alliance Laundry Systems drain hose that runs from the electric drain pump out to the standpipe on Kleenmaid and Speed Queen top load washing machines. Alliance catalogue it as Hose, Drain (NDEP) (White Plastic). It is white ribbed plastic with the bend moulded into the hose, and it is the American-made original rather than a generic copy.

Please check before ordering: Two things to check before you order. First, this hose is for machines with an electric drain pump. These machines were also built in belt-drive and direct-drive drain configurations that use a different hose - identify your pump first. Second, and importantly: if your machine is a KAW393, KAW693 or KAW793, this is very probably NOT your hose. Many Australian sellers list those models against this part, but Kleenmaid's own KAW parts catalogue does not contain this part number anywhere, and Alliance assigns the KAW machines to a different drain hose, 39953. If you have a KAW machine, contact us before ordering and we will confirm which hose you need. This is a top loader part only - it does not suit the Kleenmaid front loaders (LTKA5, LTK95, LTKA6, LTK96) or the Gorenje, Bosch or Brandt built Kleenmaid machines.
Part Numbers
Part numberKS39864
Original manufacturer number39864 (Alliance Laundry Systems / Speed Queen)
Alliance descriptionHose, Drain (NDEP) (White Plastic)
Replaces38812, and KS35850
Brand cross referencesUNMC39864 (UniMac), HUEB39864 (Huebsch), PRM39864 (Primus), IPS39864 (IPSO)
Drain typeElectric drain pump models (used with pump 39255P)
MaterialWhite corrugated plastic, moulded bent end
Which Part Do You Need
KS39864 - this listingThe drain hose for Kleenmaid / Speed Queen top loaders with an electric drain pump.
KS39953 / 39953A different drain hose - 2 metres, 38mm outside diameter, rubber end 29mm inside diameter, no hose hook. This is the hose Alliance catalogue against the KAW393, KAW693 and KAW793 machines.
28293Rubber drain hose used on belt-drive configurations.
39894Drain hose for the 50Hz non-vend LWNA62SP / AWN432SP / AWNE82SP / AWNE92SP machines. Different part - and easy to confuse in Australia because it is the 50Hz one.
203588The drain hose on newest-serial Speed Queen residential machines (serial 2001000001 onwards). A design change, not a replacement for this hose.
20391 / F200204Hose clamp - sold separately, not included.
562P3Siphon break kit - required if your drain point sits lower than the top of the machine.
36878Standpipe adapter, for standpipes with an inside diameter of 51mm or less.
Fits These Models
LWG74AW-3050LWK23AW-3050LWK24AW-3050LWK24NW-3050LWK73AW-3050LWK74AW-3050LWK74NW-3050AWN552SN301AW01AWN552SN301NW22AWN552SN301NW29AWNA62SN301AW01AWNA62SN303AW01AWNA62SN305AW01AWNE82SN303AW01AWNE92SN303AW01AWNE92SN305AW01

Brands: Kleenmaid, Speed Queen (Alliance Laundry Systems). Also badged Huebsch, UniMac, Primus and IPSO. Kleenmaid laundry sold in Australia on this platform was built by Speed Queen / Alliance, which is why the part carries both names. Your model number is on the rating plate under the lid or on the rear panel and reads like LWK24AW-3050. Please quote the full string including the -3050 suffix. If your model is not listed, send us your full model number and we will check it for you.

Symptoms This Part Fixes
Water leaking behind the machine during drain or spinSplit or perished hose - the moulded bend is the usual failure point.
Slow draining or will not drainHose kinked or crushed against the wall behind the machine.
Hose blown off the pump spigotPerished hose end or a failed clamp.
Machine drains continuouslyNot the hose itself - this is siphoning, and it needs the siphon break kit 562P3 fitted.
Hose brittle or cracking when movedNormal end of life on these older machines. Replace rather than patch.
Specifications
Part typeDrain / outlet hose, machine to standpipe
MaterialCorrugated white plastic
EndMoulded bend
ForElectric drain pump models
OriginGenuine Alliance Laundry Systems, USA made
Not includedHose clamp, hose hook, siphon break kit
Machine typeTop loaders only
Fitting Notes
Isolate firstSwitch off at the wall and turn off the taps before you pull the machine out.
Release the retainerUnhook the old hose from its retainer clamp at the cabinet before removing it.
Standpipe heightAlliance recommend a standpipe height of 914mm. Standpipes above 1220mm are not recommended.
Standpipe diameterIf your standpipe inside diameter is 51mm or less, fit standpipe adapter 36878.
Siphon breakIf the drain receptacle sits lower than the top of the cabinet, the siphon break kit 562P3 must be fitted or the machine will siphon and drain continuously.
Do not push the ribs inDo not push any ribbed part of the hose down into the standpipe. Secure it with the beaded strap about 300mm below the top of the pipe and tug test it.
Check for kinksMake sure the hose is not kinked or crushed when you push the machine back - this is the single most common cause of a repeat drain fault.
