LARGE SERIES INLINE PLUG PUSH LOCK
LARGE SERIES INLINE PLUG PUSH LOCK
SKU code: WES_24002431-02_1

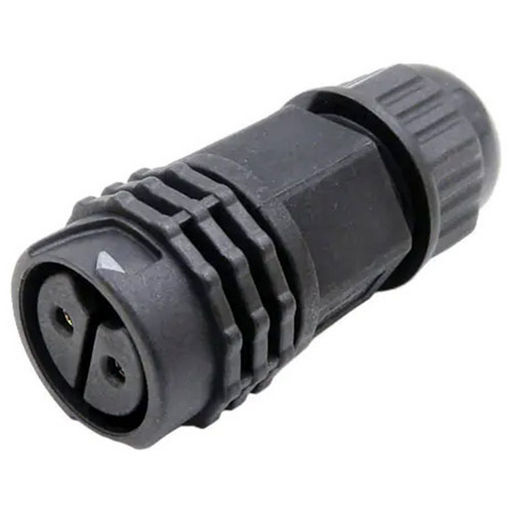

This is a LARGE SERIES INLINE PLUG PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LARGE SERIES INLINE PLUG PUSH LOCK |
| Notes | Series inline connector for extending Large Series Connectors.The push-locking connector is simple and fast to plug in and out. All the products are manufactured with high quality materials, the plastic material used is high performance PA66, male pin used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Products have certificate by CE, UL, TUV and ROHS environmental protection requirements. Large series connector has good performance in waterproofing. IP67. |
| Description | Large series 2pin female connector with female pin field installable(push lock) |
| Cable | 12AWG |
| Cable Range | 6.5-10.5 |
| Chogori Cat Page | 86 |
| IP | IP67 |
| Contact | 2 |
| Mechanical Life | 500 mating cycles |
| Operating Temperature | -45 ~ +105 |
| Rated Current | 20A |
| Size | 57x27mmØ |
| Voltage Rating | 300V |
| Wire Gauge | 4.0mm² |
| Manufacturer | Chogori |
| SKU No | WES_24002431-02_1 |
