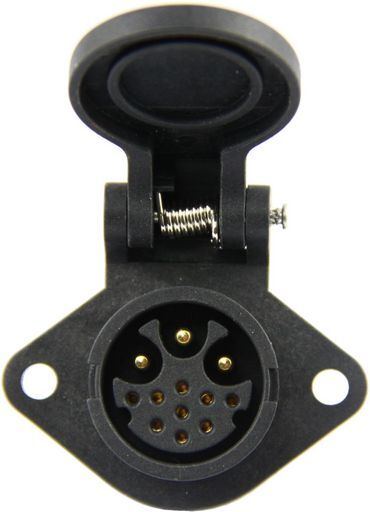

This is a .LARGE SERIES SOCKET PUSH LOCK of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title .LARGE SERIES SOCKET PUSH LOCK
Notes RHOMBUS PANEL MOUNT - MALE PINS Large series connector with spring loaded dust cap to keep out ingress and protect the connector when not in use. The push-locking connector is simple and fast to plug in and out. Installation type has a rhombus flange. All the products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66, male pin used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Products have certificate by CE, UL, TUV and ROHS environmental protection requirements. The connector can insert and withdraw to 3000 times or more, ensure a reliable contact every time.
DescriptionLarge series 2pin rhombus flange panel mount with pin(push lock)
Cable12AWG
Contact2
Hole20mmØ
Mechanical Life500 mating cycles
Wire Gauge4.0mm²
Panel ThicknessMax 5.0mm
IPIP67
Operating Temperature-45 ~ +105
Voltage Rating300V
Rated Current20A
Chogori Cat Page86
ManufacturerChogori
SKU NoWES_24002536-02_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN 24002536-02
SKU WES_24002536-02_1
Brand Chogori
