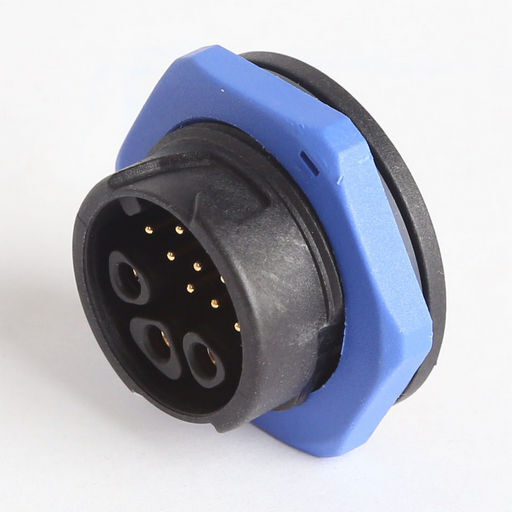

LARGE SERIES SOCKET PUSH LOCK
FRONT PANEL MOUNT - FEMALE PINS
SKU code: WES_24309635-01_1
This is a LARGE SERIES SOCKET PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LARGE SERIES SOCKET PUSH LOCK |
| Notes | FRONT PANEL MOUNT - FEMALE PINS This Large series connector is blue capped to indicate a different pin gender for use where the signal is in another direction to the yellow capped versions. Simple push to lock plug insertion, then twist and pull to release. Mounting screw is attached to the front of the chassis panel. Excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. It is ideal for indoor and outdoor harsh working environments. The connector can insert and withdraw to 3000 times or more, ensure a reliable contact every time. Cap to suit: 804-00005-00 |
| Description | Large series 3socket+9pin front panel mount(push lock) |
| Contact | 3+9(FM) |
| Cable | 12AWG *3C + 24AWG *9C |
| Hole | 25mmØ |
| Wire Gauge | 2.5mm²*3C + 0.2mm² *9C |
| Panel Thickness | Max 2.2mm |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 20A+5A |
| Chogori Cat Page | 89 |
| Mechanical Life | 500 mating cycles |
| Manufacturer | Chogori |
| SKU No | WES_24309635-01_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 24309635-01 |
| SKU | WES_24309635-01_1 |
| Brand | Chogori |
