This is a replacement drain pump part(s). It is suitable for replacing spare parts for LG Washing Machine.

SALIN is a leading Australian appliance spare parts distributor specializing in LG appliances. We take pride in our ability to bring hard-to-find LG spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our LG range is genuine.

TECHNICAL SHEET

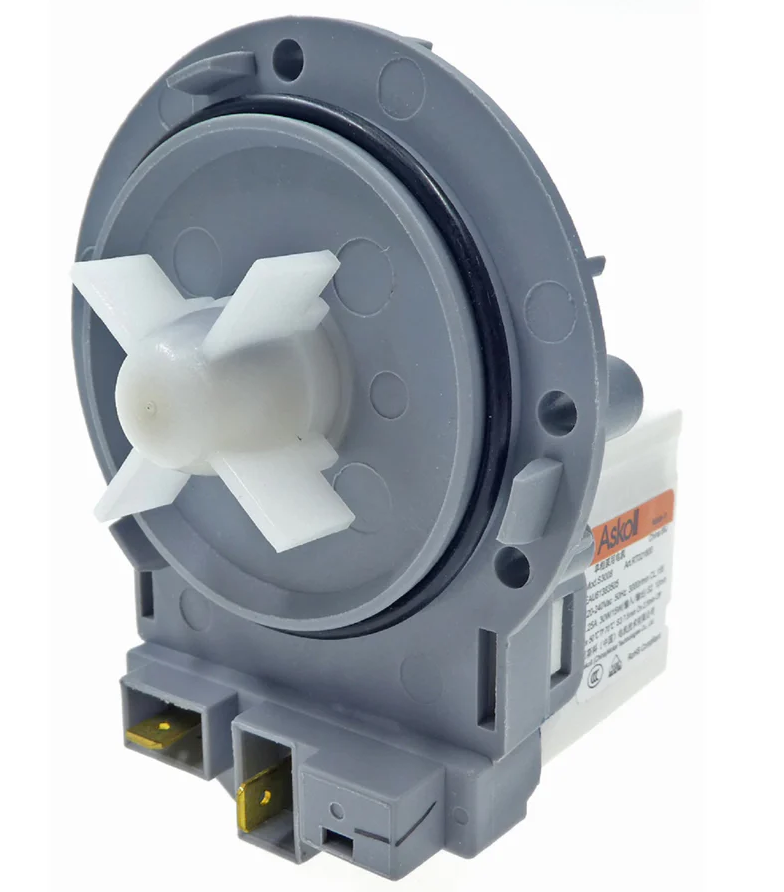

TitleLG Front Load Washing Machine Drain Pump - BO112
TypeDrain Pump Part(s)
Suitable ForWashing Machine
Compatible BrandsLG
Compatible Models✔ WD1207NCW (F2J6QNP0W.ABWREAP)
✔ WD1208TC4W (F2J6GNP1W.ABWREAP)
✔ WD14023D6 (F14A8TD.ABWREAP)
✔ WD14024D6 (F14A8GD.ABWREAP)
✔ WD1402CRD6 (F1496AD3.ABWREAP)
✔ WD14030D6 (F1480FD.ABWREAP)
✔ WD14030D (F1403FD3.ABWREAP)
✔ WD14030D (F1403FD.ABWREAP)
✔ WD14030FD6 (F1480RDS.ABWREAP)
✔ WD14030FD (F1403RDS3.ABWREAP)
✔ WD14030FD (F1403RDS.ABWREAP)
✔ WD14030RD6 (F1480RD.ABWREAP)
✔ WD14030RD (F1403RD3.ABWREAP)
✔ WD14030RD (F1403RD.ABWREAP)
✔ WD14039D6 (F1480FD9.ACRREAP)
✔ WD14039D (F1403FD39.ACRREAP)
✔ WD14039D (F1403FD9.ACRREAP)
✔ WD14060D6 (F1443KD.ABWREAP)
✔ WD14060SD6 (F1443KDS7.ASSREAP)
✔ WD14060SD6 (WD14060SD6)
✔ WD14070D6 (F1495KD.ABWREAP)
✔ WD14070SD6 (F1495KDS7.AESREAP)
✔ WD14071SD6 (F1495KDS.ABWREAP)
✔ WD14075D6 (F1495KDS7.AESREAP)
✔ WD1408NCW (F4J8GNP2W.ABWREAP)
✔ WD1408NPW (FH4A8GDNK2.ABWREAP)
✔ F1069FD2 (F1069FD2.ABWREAP)
✔ F1069FD3 (F1069FD3.ABWREAP)
✔ F1069FD4 (F1069FD4.ABWREAP)
✔ F1069FD (F1069FD.ABWREAP)
✔ F1495BD (F1495BD.ABWQEDG)
✔ F14A8FD (F14A8FD.ABWQESW)
✔ F14A8RDS (F14A8RDS.ABWQESW)
✔ F14A8TDS (F14A8TDS.ABWQESW)
✔ WD1409HPW (FH4A8FDHK2N.ABWREAP)
✔ WD1409NCE (F4J8FNP2S.AESREAP)
✔ WD1409NCW (F4J8FNP2W.ABWREAP)
✔ WD1409NPE (FH4A8FDNK6.AESREAP)
✔ WD1409NPW (FH4A8FDNK2.ABWREAP)
✔ WD1410SBW (FH495KDSK2.ABWREAP)
✔ WD1411SBW (FH4K9KDSK2.ABWREAP)
✔ WD14130D6 (F14A8FD.ABWREAP)
✔ WD14130FD6 (F14A8RDS.ABWREAP)
✔ WD14130RD6 (F14A8RD.ABWREAP)
✔ WD14135D6 (F14A8FD7.AESREAP)
✔ WD-14313RD (WD-14313RD.AOWREAP)
✔ WD-1457RD (WD-14570RD.ATWREAP)
✔ WD-1470FD (WD-14220FD.AOWREAP)
✔ WD14750SD (WD-14440TDS.AOWREAP)
✔ WD14756SD (WD-14446TDS.ABPREAP)
✔ WD1475NCW (F4J6QNP1W.ABWREAP)
✔ WD14800RD (WD-14312RDK.AOWREAP)
✔ WD-1481RD (WD-14313RD.AOWREAP)
✔ WD-1485RD (WD-14314RD.AOWREAP)
✔ WD-1488RD (WD-14312RD.AOWREAP)
✔ WD-1488RD (WD-14312RD.AOWRRAN)
✔ WDC1475NCW (F4J6QMP1W.ABWREAP)
✔ WD-F14427D (F14A8FD7.AESPEPN)
Notes

Equivalent to Part Nos. EAU61383505, LGF037S, 1030239WS.

Askoll Mod. M253, Art. RS0666, Cod. RS0664.

Similar to Hanning Code # DP025-208, Plaset Code # 63096 & 70468.

Interchangeable in fit with Part nos. UNI087, DFL020, UNI088, UNI087H, PMP88.

220/240VAC, 0.2A, 50Hz, 25Watt, 6.4mm terminals. Terminals are located at the front of the motor.

This part fits many 240 volt LG washing machines / dryer combo machines where the motor body attaches to the cover by screws from the rear of the pump. 5 mounting holes.

This part can be used in many other brands such as Samsung, Asko, Bosch, Whirlpool, Philips, NEC, Midea, Daewoo, Kleenmaid and any others where the pump attaches to the pump housing with three screws from the rear.

Models this part suits:

WD1207NCW (F2J6QNP0W.ABWREAP), WD1208TC4W (F2J6GNP1W.ABWREAP), WD14023D6 (F14A8TD.ABWREAP), WD14024D6 (F14A8GD.ABWREAP), WD1402CRD6 (F1496AD3.ABWREAP), WD14030D6 (F1480FD.ABWREAP), WD14030D (F1403FD3.ABWREAP), WD14030D (F1403FD.ABWREAP), WD14030FD6 (F1480RDS.ABWREAP), WD14030FD (F1403RDS3.ABWREAP), WD14030FD (F1403RDS.ABWREAP), WD14030RD6 (F1480RD.ABWREAP), WD14030RD (F1403RD3.ABWREAP), WD14030RD (F1403RD.ABWREAP), WD14039D6 (F1480FD9.ACRREAP), WD14039D (F1403FD39.ACRREAP), WD14039D (F1403FD9.ACRREAP), WD14060D6 (F1443KD.ABWREAP), WD14060SD6 (F1443KDS7.ASSREAP), WD14060SD6 (WD14060SD6), WD14070D6 (F1495KD.ABWREAP), WD14070SD6 (F1495KDS7.AESREAP), WD14071SD6 (F1495KDS.ABWREAP), WD14075D6 (F1495KDS7.AESREAP), WD1408NCW (F4J8GNP2W.ABWREAP), WD1408NPW (FH4A8GDNK2.ABWREAP), F1069FD2 (F1069FD2.ABWREAP), F1069FD3 (F1069FD3.ABWREAP), F1069FD4 (F1069FD4.ABWREAP), F1069FD (F1069FD.ABWREAP), F1495BD (F1495BD.ABWQEDG), F14A8FD (F14A8FD.ABWQESW), F14A8RDS (F14A8RDS.ABWQESW), F14A8TDS (F14A8TDS.ABWQESW), WD1409HPW (FH4A8FDHK2N.ABWREAP), WD1409NCE (F4J8FNP2S.AESREAP), WD1409NCW (F4J8FNP2W.ABWREAP), WD1409NPE (FH4A8FDNK6.AESREAP), WD1409NPW (FH4A8FDNK2.ABWREAP), WD1410SBW (FH495KDSK2.ABWREAP), WD1411SBW (FH4K9KDSK2.ABWREAP), WD14130D6 (F14A8FD.ABWREAP), WD14130FD6 (F14A8RDS.ABWREAP), WD14130RD6 (F14A8RD.ABWREAP), WD14135D6 (F14A8FD7.AESREAP), WD-14313RD (WD-14313RD.AOWREAP), WD-1457RD (WD-14570RD.ATWREAP), WD-1470FD (WD-14220FD.AOWREAP), WD14750SD (WD-14440TDS.AOWREAP), WD14756SD (WD-14446TDS.ABPREAP), WD1475NCW (F4J6QNP1W.ABWREAP), WD14800RD (WD-14312RDK.AOWREAP), WD-1481RD (WD-14313RD.AOWREAP), WD-1485RD (WD-14314RD.AOWREAP), WD-1488RD (WD-14312RD.AOWREAP), WD-1488RD (WD-14312RD.AOWRRAN), WDC1475NCW (F4J6QMP1W.ABWREAP), WD-F14427D (F14A8FD7.AESPEPN), and possibly more.

Part NumberEAU61383505
SKU NumberPTH_0001483_1
