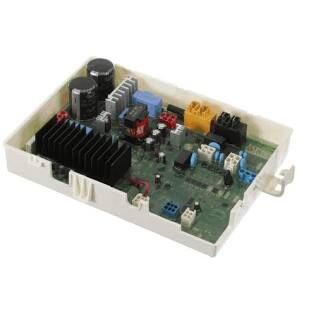

LG Front Load Washing Machine Main PCB – Part No EBR74798630

Genuine LG main printed circuit board (PCB) for front load washing machines. This is the primary control board that runs the wash program, motor, pump and door lock. Replaces a failed or water-damaged main board.

Part Numbers

Fits These Models

The same machine is sold under both an Australian model number (WD12590D6 / WD12595D6) and an LG global model code (F1255FD / F1255FD7). Either one identifies your machine.

Important – Check Before You Order

• Main PCBs are build-specific. LG changed boards partway through production runs, so two machines with the same model number can take different boards depending on serial number and manufacturing date.
• Before ordering, send us both the model number and the serial number from the rating plate, and we will confirm this is the right board for your machine.
• The rating plate is on the door frame with the door open, or on the rear panel.
• The best check of all is the number printed on the board itself – remove the top lid and read the label on the existing PCB. If it says EBR74798630, this is your part.
• A main board is a mains-voltage component. Replacement should be carried out by a qualified appliance technician.
• Before replacing a main PCB, have the fault diagnosed properly – many symptoms blamed on the board (no start, program stopping, error codes) are caused by the door lock, motor, wiring or pressure sensor.
