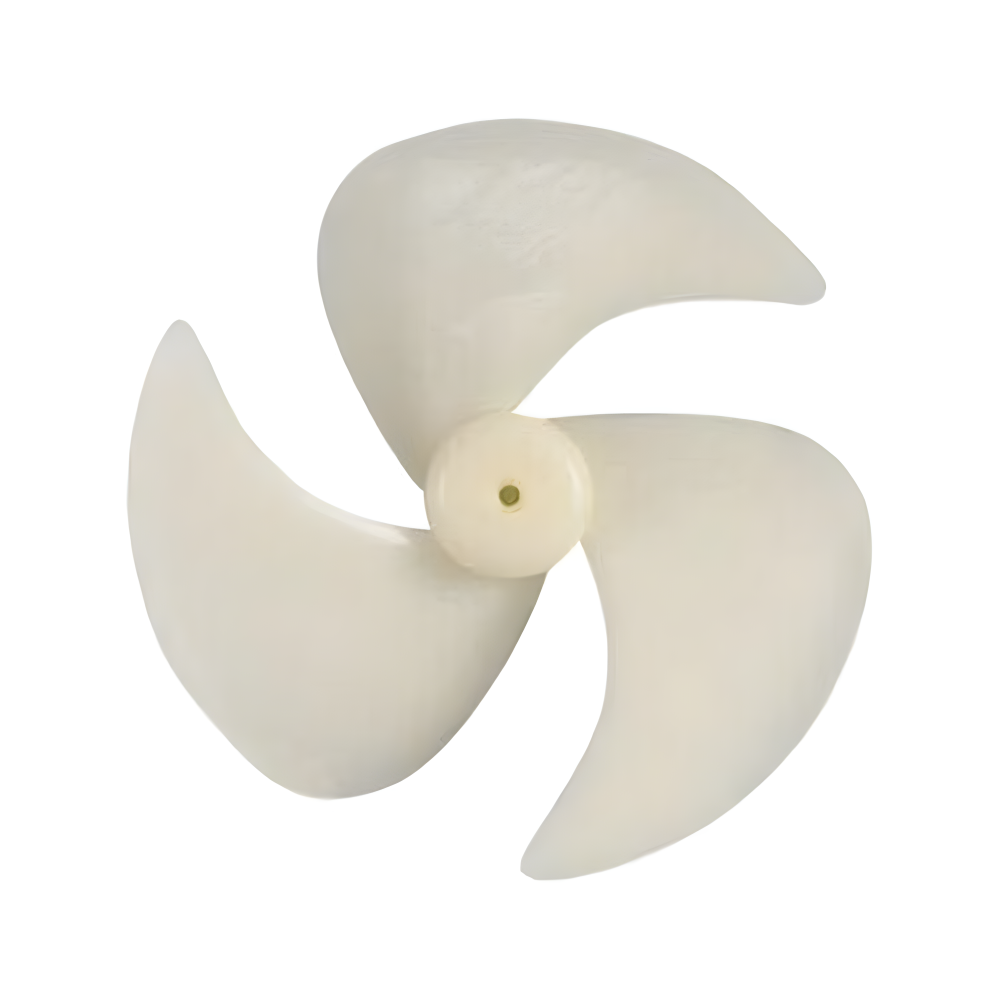

LG Fridge Condenser Fan Blade - 3 Blade, Cream

The condenser fan blade that sits at the back of the fridge, beside the compressor, on LG bottom-mount and top-mount refrigerators. It pulls air across the condenser coil so the refrigerant can shed its heat. When this blade cracks, warps or loses a fin, the fridge runs warm, the compressor runs long or constantly, and you usually hear a rattle or a knock from the rear of the cabinet.

Part numbers

• ADP36665705 - current LG part number
• ADP36665701 - superseded, replaced by ADP36665705

Specification

• 3 blades
• Colour: cream
• Position: rear of cabinet, on the condenser fan motor shaft beside the compressor
• Brand: LG

Suitable LG models

Australian market models, with the factory (serial plate) model code in brackets. If the model on your sticker is the code in brackets, this is still the right part.

• GN-345HPL (GN-B392RLCM.APZRGAP)
• GN-345HWL (GN-B392RQCM.ASWRGAP)
• GN-450USL (GN-B519PSAZ.ANSRGAP)
• GN-450UWL (GN-B519PQAZ.ASWRGAP)
• GN-B602HLPL (GN-B602HLPL.APZQESA)
• GN-W450UPL (GN-F519ELDZ.APZRGAP)
• GN-W450USL (GN-F519ESDL.ANSRGAP and GN-F519ESDZ.ANSRGAP)
• GR-W600GSL (GR-B762GSTH.ANSRGAP)
• GT-427HPLE (GN-B422SQCL.ADSRGAP)
• GT-442BTDC (GT-442BTDC.ABLRGAP)
• GT-442SDC (GN-C432HLCU.APZRGAP)
• GT-442WDC (GN-C432HQCU.ASWRGAP)
• GT-515BPL (GN-B602HLCM.APZRGAP)
• GT-515BTDC (GN-H602HXHU.ABLRGAP)
• GT-515BWL (GN-B602HQCM.ASWRGAP)
• GT-515SDC (GN-C602HLCU.APZRGAP)
• GT-515WDC (GN-C602HQCU.ASWRGAP)
• GT-W515BPL (GN-B602HLPM.APZRGAP)

Also listed by LG parts suppliers for

These are export and other-market variants of the same cabinets. Check the blade against your old one before fitting.

GR-B218STS, GR-B652GCC, GR-B762HLPC, GR-B762HLPM, GR-L218ASL, GR-L218CSL, GR-L218STSL, GR-L219CPL, GR-L219CSL, GR-L219STS, GR-L219STSL, GR-L258DS, GN-407GSL, GN-407GWL, GN-515GS, GN-515GW, GN-W407GSL, GN-W515GS, GN-W515GSL, GN-W515GW, GT-W600BPL, GT-W600BPLX.

Fitting

1. Unplug the fridge at the wall.
2. Remove the rear service cover over the compressor bay.
3. Slide the old blade off the fan motor shaft. Most are a push fit with a retaining clip or a small nut.
4. Push the new blade fully onto the shaft, seated the same depth as the old one, and check it spins free of the shroud by hand.
5. Refit the cover and power up.

If the old blade was cracked at the hub rather than the tips, inspect the fan motor as well. A seized or dragging motor is what breaks hubs.

OEM Genuine

This is an OEM genuine part. It is made by the original equipment manufacturer, the same company in the same factory that made the part fitted to your appliance when it was built, and it carries their part number. It is supplied to us without the appliance brand retail packaging, and that is the only reason it costs less than a boxed part bought from the brand. The part itself is the same part.

Brand

LG. Fits LG-built refrigerators sold in Australia under the LG badge.

SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.
