LiFePO4 Rechargeable Lithium Battery Drypower | Capacity: 3.8Ah | 6.4V | Terminal: Spade 4.75mm | For Medical | For Solar and more
RECHARGEABLE LITHIUM IRON PHOSPHATE BATTERY
SKU code: WES_6LFP3.8_1

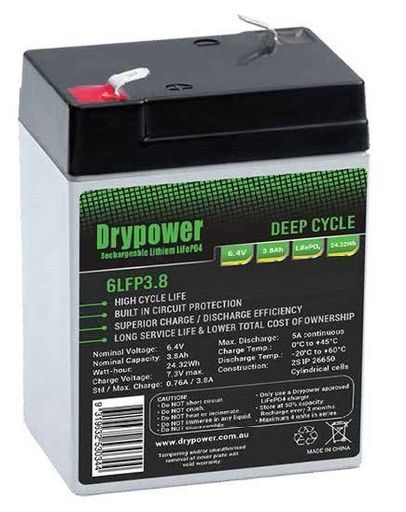

This is a 6.4V 3.8AH LiFePO4 - DRYPOWER of brand Drypower.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6.4V 3.8AH LiFePO4 - DRYPOWER |
| Notes | RECHARGEABLE LITHIUM IRON PHOSPHATE BATTERY Drypower 6LFP3.8 is a 6.4V 3.8Ah Lithium Iron Phosphate (LiFePO4) rechargeable battery with 4.75mm spade terminals. Compact and light weight compares to SLA batteries with the same capacity. Fast charging. The battery has a 2S1P set-up. It supports connection in series up to 4S.Long Service Life, >2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint. More Power p/kg.Enclosed in IP64 ingress rated case with closed loop terminals - suitable for harsh environmentsStable Chemistry & Built-in Circuit Protection,Lightweight, Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.Wide Operating Temperature Tolerance from -20°C up to +60°C.Fully Recyclable Battery, with no lead or calcium that can leak into the environment. Note: Cylindrical LiFePO4 cells design, this battery can be used and mounted in any orientation, offering ultimate flexibility in a wide variety of applications. |
| Description | Drypower 6.4V 3.8Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - Up to 4 in Series Capable |
| Voltage | 6.4V |
| Assembly | 2S1P |
| Capacity | 3.8Ah |
| Cell Type | Cylindrical |
| Cells | IFR26650-38A |
| Height | 101mm |
| Height (Inc Terminal) | 108mm |
| IP | IP64 |
| Length | 70mm |
| Manufacturer | Drypower |
| Orientation | Any |
| Parallel | No |
| Series | Up to 4S |
| Size | 70x48x101mm |
| Term. | Spade 4.75mm |
| Terminal Type | F1 (Faston 187) |
| Volts | 6.4V |
| Watt | 24.32Wh |
| Weight | 0.29kg |
| Width | 47.5mm |
| Charge Current Max. | 3.8A |
| Discharge Current Max | 5A |
| Discharge Cut-off Voltage | 5V |
| Charge Voltage Max. | 7.3V |
| SKU No | WES_6LFP3.8_1 |
