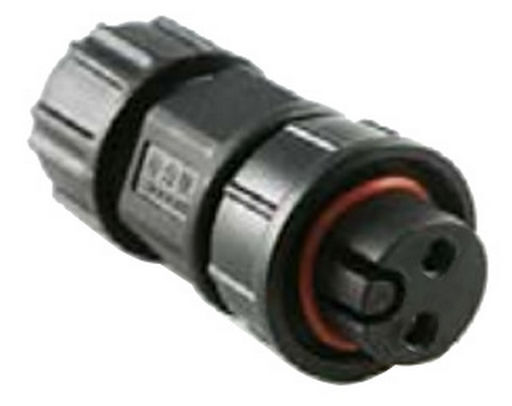

This is a MIDDLE SERIES INLINE PLUG LOCK BAYONET of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MIDDLE SERIES INLINE PLUG LOCK BAYONET |
| Notes | In-line socket solution with lock bayonet mechanism for cable extension. This high-quality connector can self-locking when they plug into its mate ,making insertion and extraction quick so other industrial machinery input and output devices can be easily replaced. All the Middle products are manufactured with high quality materials, the plastic material used is high performance PA66, copper needles used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The connector can insert and extract up to 3000 times or more. |
| Description | Middle series 10pin female plug with socket field installable(lock bayonet) |
| Cable | 24AWG |
| Cable Range | 3.5-6.5 |
| Chogori Cat Page | 57 |
| Contact | 10 |
| IP | IP67 |
| Mechanical Life | 500 mating cycles |
| Operating Temperature | -45 ~ +105 |
| Rated Current | 5A |
| Size | 45x22mmØ |
| Voltage Rating | 30V |
| Wire Gauge | 0.25mm² |
| Brand. | Chogori |
| Manufacturer | Chogori |
| SKU No | WES_23010221-01_1 |
