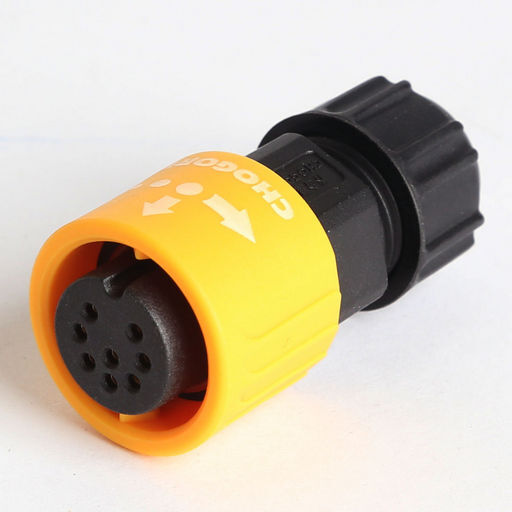

MIDDLE SERIES PLUG (R) PUSH-LOCK
MALE PUSH LOCK - FEMALE PINS
SKU code: WES_23008231-02_1
This is a MIDDLE SERIES PLUG (R) PUSH-LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MIDDLE SERIES PLUG (R) PUSH-LOCK |
| Notes | MALE PUSH LOCK - FEMALE PINS Reversed pins for active signal, power or control configurations.Simple push to lock plug insertion, then twist and pull to release. Middle connector is designed to apply in harsh industrial and climatic environment, its superior quality can ensure a reliable connection for industrial machinery and equipment, marine electronics, power and signal control systems. This high-quality connector is self-locking when they plug into its mate. All the Middle products are manufactured with high quality materials to meet the various requirements of different environments. The connector can insert and extract up to 3000 times. |
| Description | Middle series 8pin male plug with socket field installable(push lock) |
| Size | 45x24mmØ |
| Cable | 22AWG |
| Contact | 8 |
| Mechanical Life | 500 mating cycles |
| Cable Range | 6.5-9.5 |
| Wire Gauge | 0.34mm² |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 60V |
| Rated Current | 5A |
| Chogori Cat Page | 63 |
| Manufacturer | Chogori |
| SKU No | WES_23008231-02_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 23008231-02 |
| SKU | WES_23008231-02_1 |
| Brand | Chogori |
